150 Meters Drill Rig Mining For Samples Coring All Kinds Layers

Large Image : 150 Meters Drill Rig Mining For Samples Coring All Kinds Layers

Product Details:

Place of Origin:	China
Brand Name:	JINZHOUSHITAN
Certification:	ISO9001
Model Number:	XY-1A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-12 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	XY-1A Soil Test Drilling Machine	Key Words:	Soil Testing Drilling Machine,Exploration ,Water Well Drilling,borehole Drilling Machine,core Drill Rig,hydraulic Drilling Machine
Drilling Depth:	150 Meters	Drilling Hole Diameter:	150mm
Power:	Diesel Engine	Voltage:	380V
Power(W):	16.2KW	Weight:	500kg
Highlight:	soil testing drilling rig , soil investigation machine

XY-1A 150 Meters Soil Test Drilling Rig Machine

Product Specifications

Attribute	Value
Product Name	XY-1A Soil Test Drilling Machine
Drilling Depth	150 Meters
Drilling Hole Diameter	150mm
Power	Diesel Engine
Voltage	380V
Power	16.2KW
Weight	500kg

Product Overview

The XY-1A drilling rig features a 150 meters drilling depth and 150mm hole diameter, making it ideal for engineering geological exploration in various construction projects including industrial and civil buildings, railways, hydropower, transportation, bridges, and dam foundations. This hydraulic feeding drilling machine combines high speed, torque belt efficiency, and portability with pump integration.

Technical Specifications

Component	Specification
Drill
Drilling depth	Max. 150m
Hole diameter	Max. 150mm
Drill rod diameter	42mm
Angle range	90-75°
Swivel Head
Spindle speed	1010, 790, 470, 295, 140 (r/min)
Spindle stroke	450mm
Spindle pull-down	Max. 15KN
Spindle lifting capacity	Max. 25KN
Oil Pump
Model	YBC-12/125
Rated pressure	12.5Mpa
Flow speed	8ml/r
Rated speed	1500r/min
Water Pump
Model	Horizontal reciprocating single-acting piston pump
Working pressure	Max. 1.25Mpa
Hoist
Max. lifting capacity	15KN
Hoisting drum revolution	121, 76, 36 (r/min)
Drum diameter	140mm
Power (Diesel)
Model	ZS1105
Rated power	12.1KW
Rated speed	2200r/m
Weight	Approx. 600kg
Size	1620 × 970 × 1560mm

Key Advantages

Hydraulic feeding mechanism reduces physical labor intensity
Ball clamp clamping mechanism enables rod reversing without stopping
Flexible positioning with machine movement or gyrator opening
Lightweight design with strong decomposability for easy transportation
Suitable for various drilling projects including geological survey and building foundation exploration
Multiple bit options available for different formations (alloy, steel particle, diamond)
Capable of drilling into grade 2-9 sandy clay and weathered bedrock
Rated drilling depth of 150m with maximum hole diameter of 150mm

Soil Sampling Procedure

Step 1: Divide the field into homogeneous units based on visual observation and experience
Step 2: Remove surface litter at the sampling spot
Step 3: Drive the auger to a plough depth of 15 cm and draw the soil sample
Step 4: Collect 10-15 samples from each unit into a clean container
Alternative Method: Create a 'V' shaped cut to 15cm depth and remove thick soil slices if auger unavailable

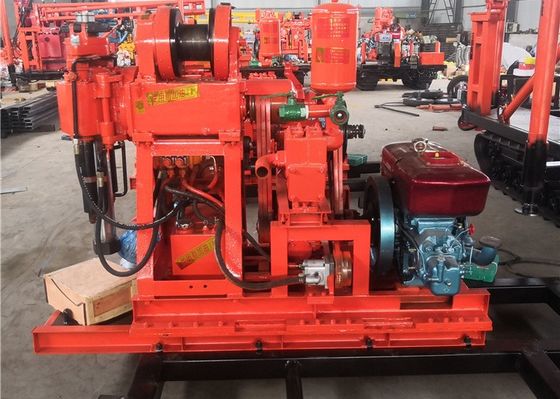

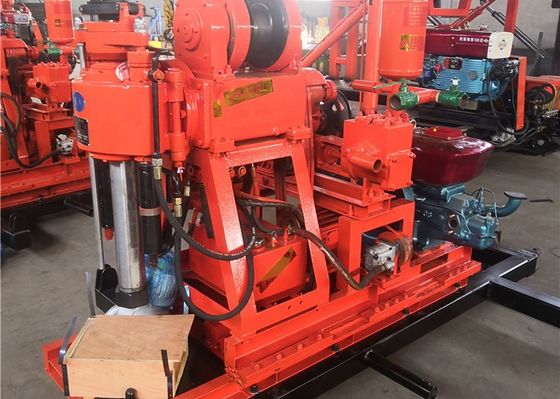

Product Images
