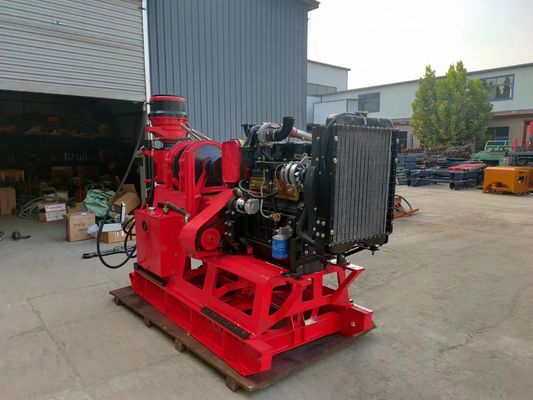

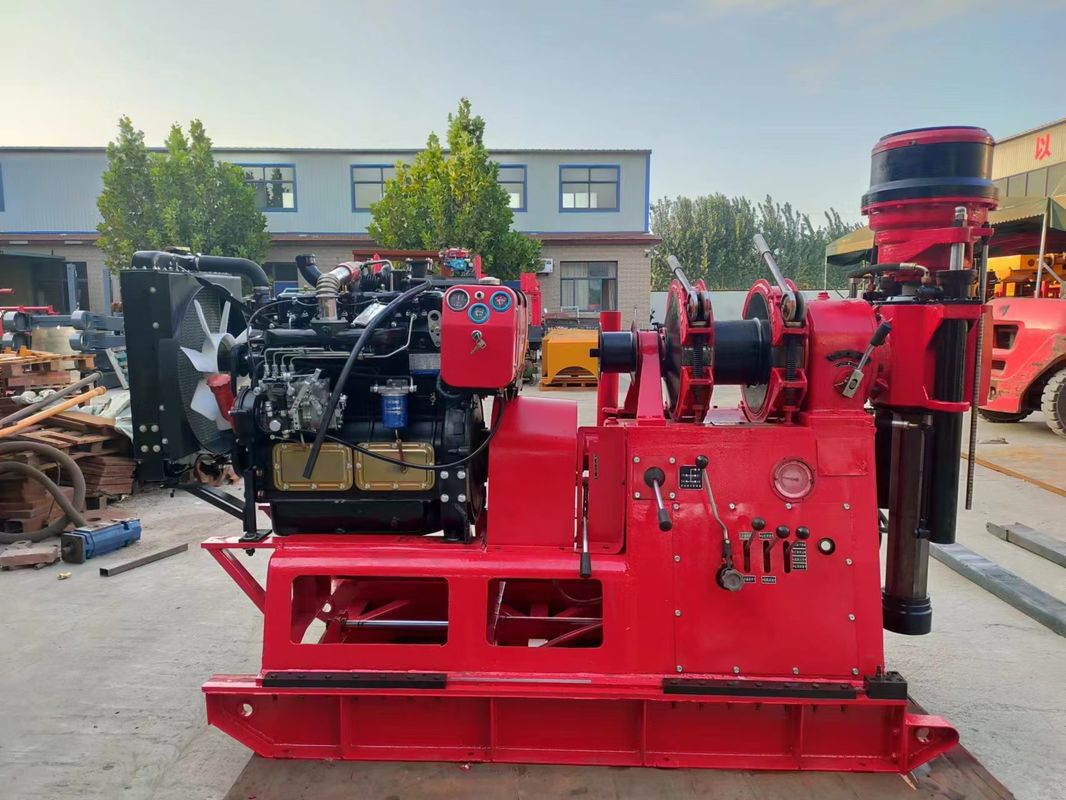

XY-2B Water Well Drilling Rig High Efficiency Core Drilling Rig
Product Description
XY-2B drilling rig is a kind of medium shallow hole core drilling machine. The utility model has the advantages of small size, light weight, large power and wide range. It is especially available for constructions of hydroelectric power station, highway, railroad and harbor etc.
Machine Parameter
| Unity machine parameter |
| Drilling depth |
600m |
| Max open hole caliber |
300mm |
| End hole caliber |
75mm |
| Drilling angle |
90°~65° |
| Dimension |
2220 x 900 x 1800mm |
| Drill weight (without power) |
1950kg |
| Spindle |
| spindle speed |
Forward 57 99 157 218 270 470 742 1024r/min |
| Reverse 51 242r/min |
| Spindle stroke |
450mm |
| Spindle inner diameter |
96mm |
| Lifting capacity |
6000kg |
| Hoist |
| Max.Single line lifting capacity |
3000kg |
| Max.Single line lifting speed |
0.52, 0.90, 1.42, 1.95m/s |
| Wirerope caliber |
12.5mm |
| Wirerope length |
50m |
| Reel diameter |
200mm |
| Hug folldgate belt width |
90mm |
| Oil pump |
| Type |
F532 gears oil pump |
| Flow |
32 L/min |
| Pressure |
20 Mpa |
| Power |
| Diesel engine |
K4100D30 |
| Electric motor |
Y180L-4 22KW |
Specifications
Drilling depth:600m
Drill diameter:300mm
Easy to operate and transport
Lightweight and compact structure
Features of XY-2B hydraulic core drill
a. XY-2B has eight forward roation gears and two reverse rotation gears, high speed, strong stroke and wide application.
b. Hydraulic chuck, can complete no-stopping rotating
c. Big inner diameter, able to use big or middle hexagonal driving lever
d. lightweight, can be easily disassembled for transport and apporiable to working conditions in plain and mountain areas
Applications of XY-2B hydraulic core drill
XY-2B drilling rig is mainly used for geological exploration, hydropower project, road and railway construction, buliding project and big diameter water well project,etc
Main Features:
1. Very powerful at soil, sand, hard rock, etc. land condition.
2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.
3. Hydraulic control system for greatly improving the working efficiency, saving labor force.
4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.
5. Power can be diesel engine or electric motor, as per your request.
