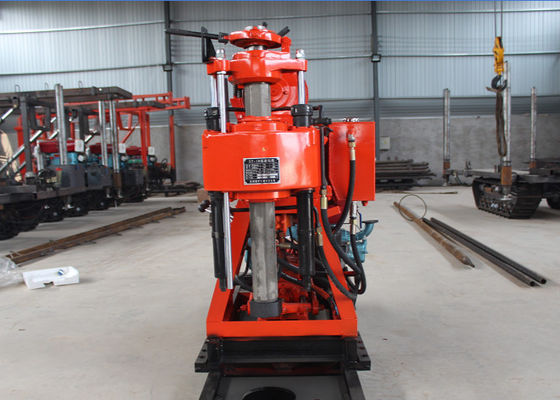

Durable Water Borehole Drilling Machine / XY-2B Hydraulic Core Drilling Rig

Durable Water Borehole Drilling Machine / XY-2B Hydraulic Core Drilling Rig
Durable Water Borehole Drilling Machine / XY-2B Hydraulic Core Drilling Rig Durable Water Borehole Drilling Machine / XY-2B Hydraulic Core Drilling Rig

Large Image :  Durable Water Borehole Drilling Machine / XY-2B Hydraulic Core Drilling Rig

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GK-180
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Type: Water Borehole Drilling Equipment Power Type: Diesel
Model Number: XY-2B Usage: Core Drill
Voltage: 380V Dimension(L*W*H): 2500*1100*1700mm
Weight: 1450KG Lifting Capacity(KN): 68
Vertical Capacity(KN): 46 Rated Power KW: 22
Motor: Y180L-4
High Light:

water well borehole drilling rig

,

hydraulic water well drilling machine

Durable Water Borehole Drilling Machine / XY-2B Hydraulic Core Drilling Rig





Main Features:



1. Very powerful at soil, sand, hard rock, etc. land condition

2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.

3. Hydraulic control system for greatly improving the working efficiency, saving labor force.

4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.

5. Power can be diesel engine or electric motor, as per your request



Unity machine parameter
Drilling depth 600m
Max open hole caliber 300mm
End hole caliber 75mm
Drilling angle 90°~65°
Dimension 2220 x 900 x 1800mm
Drill weight (without power) 1950kg
Spindle
spindle speed Forward 57 99 157 218 270 470 742 1024r/min
Reverse 51 242r/min
Spindle stroke 450mm
Spindle inner diameter 96mm
Lifting capacity 6000kg
Hoist
Max.Single line lifting capacity 3000kg
Max.Single line lifting speed 0.52, 0.90, 1.42, 1.95m/s
Wire rope caliber 12.5mm
Wire rope length 50m
Reel diameter 200mm
Hug folldgate belt width 90mm
Oil pump
Type F532 gears oil pump
Flow 32 L/min
Pressure 20 Mpa

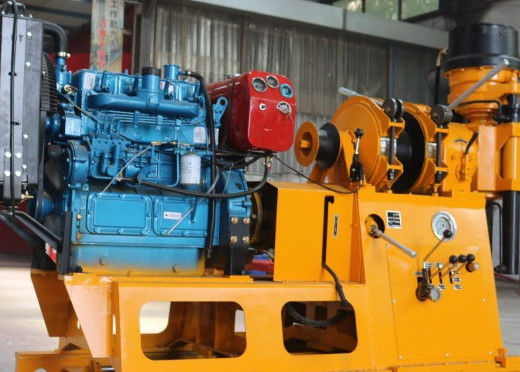

Power
Diesel engine K4100D30
Electric motor Y180L-4 22KW



Tips to select a right drilling rig:



1. What kind of projects you will work for?

Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal heat project or others?



2. Max drilling depth you want.

100m, 150m, 200m, 300m, or other depth.



3. The Min and Max borehole diameter you need.

Like Max 200mm, Min 75mm.



4. Geological condition of the working site if you know about it



Soft ground like soil, mud, sand?

Hard ground like hard rocks?

Or mixed?
