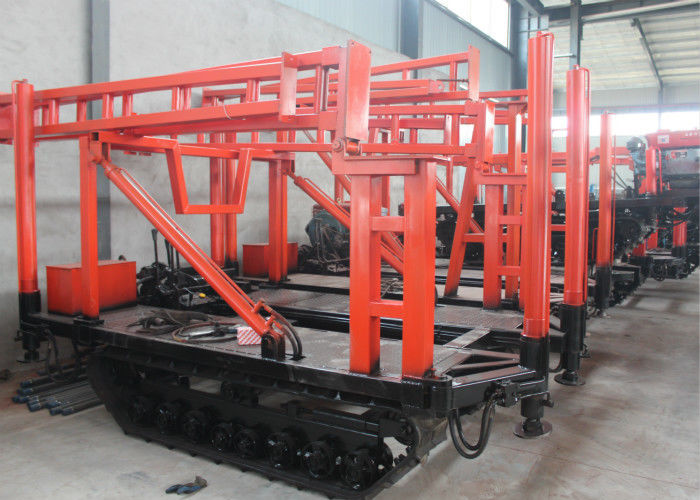

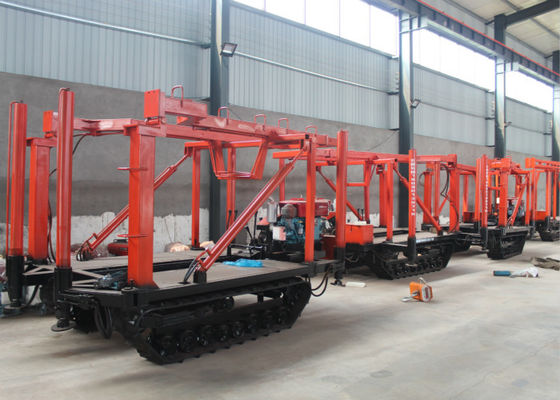

Easy Operate Crawler Mounted Drill Rig 100 - 300m Drilling Depth Free Maintaining

Easy Operate Crawler Mounted Drill Rig 100 - 300m Drilling Depth Free Maintaining
Easy Operate Crawler Mounted Drill Rig 100 - 300m Drilling Depth Free Maintaining Easy Operate Crawler Mounted Drill Rig 100 - 300m Drilling Depth Free Maintaining

Large Image :  Easy Operate Crawler Mounted Drill Rig 100 - 300m Drilling Depth Free Maintaining

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GK-180
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Features: Easy Operation / Free Maintaining Type: Core Drilling Rig
Usage: Core Drill Weight: 1450KG
Lifting Capacity(KN): 68 Vertical Capacity(KN): 46
Rated Power KW: 22 Motor: Y180L-4
High Light:

hydraulic crawler drilling machine

,

track mounted drill rig

 Easy Operate Crawler Mounted Drill Rig 100 - 300m Drilling Depth Free Maintaining



Product Introduction



1. Borehole water well drilling machine Appliance :

a. Keeping bracket is installed on the hoist to form a double wheel support structure, able to withstand strong blow

b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel layer and other complex geological conditions.

c. The machine is equipped with national patent technology---taper clutch, with characteristics of strong transmission torque, easy operation and free maintenance.

d. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.



2. borehole water well drilling machine Feature:

a.Drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration.

b. kinds of hole in concrete structure, river levees, sub-grade grouting hole ,drilling and direct grouting, civil wells and earth temperature central air-conditioner,etc



Product Description



Core drilling rig is suited for the applications of general exploration and investigation, geophysical prospecting, road and construction surver, blast holes and other drilling operations.

1. With hydraulic automatic feeding device, elevated drilling efficiency.

2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.

3. Centralized handles, easy operation, safe and reliable.

4. The drilling rig, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.

5. Light weight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.



Specification:



Model XY-100 XY-130 XY-150 XY-200
Drilling depth 100m 130m 180m 200m
Maximum open hole diameter 200mm 220mm 220mm 300mm
End hole caliber 75mm 75mm 75mm 46mm 75mm
Drill rod caliber 50mm 50mm 50mm 42mm 60mm
Drilling angle 90°~75° 90°~75° 90°~75° 90°~75°
Drill weight(No include power) 480 510kg 560kg 610kg 975kg



Features


1, Drilling depth can reach 100-300m
2,  Steels quality is good, torque is large
3, Easy operation, free-maintaining
4, For various complex stratum, such as pebble bed, aggregate bed.
5, Saving money, compact construction, easy moving
6, Applicable to industry, residents drilling, ground drilling, large diameter, deep drilling, footage fast, flexible and efficient.



Parameter



Total weight 4.6ton
Dimensions 3800 x 1600 x 2450mm
Hole diameter 115-280mm
Drill depth 200m
Feeding stroke 3000mm
Walking speed 2.5km/h
Climbing capacity 30degree
Ground clearance 250mm
Working air pressure 1.7 - 3.0Mpa
Air consumption 17 - 35m³/min
Rated power 65kw
Rotation speed 50 - 70rpm
Rotation torque 5000 - 6500N.m



After-sales service



1. New machine provides technical train.
2. Once anything goes wrong with the machine by normal using,our technical person must appear at the first time no matter where you are.
3. When the machine should be maintained,you will receive the reminding from us.
4. According to different geological conditions,we will recommend different construction plans for you.
5. Remind you which are wearing parts,so you can prepare enough.
6. 24 hours respond to your quality problem
7. Other customer's reasonable request
