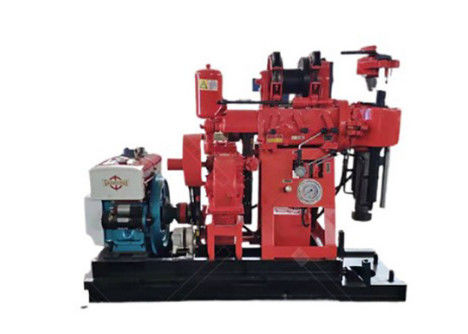

Small Water Well Drilling Rig / XY-1A Portable Rock Drilling Machines

Small Water Well Drilling Rig / XY-1A Portable Rock Drilling Machines
Small Water Well Drilling Rig / XY-1A Portable Rock Drilling Machines

Large Image :  Small Water Well Drilling Rig / XY-1A Portable Rock Drilling Machines

Product Details:

Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1A

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Features: Easy Operation / Free Maintaining Condition: New
Type: Water Well Drilling Rig Power Type: Diesel
Model Number: XY-1A Usage: Water Well
Voltage: 220v Power(W): 15KW
Dimension(L*W*H): 1.75*0.90*1.5m Weight: 550KG
Drilling Depth: 150 180M Drilling Angle: 90-75°
High Light:

water well borehole drilling rig

,

hydraulic water well drilling machine

XY-1A water well drilling rig Machine







Features:


1. XY-1A Easy operation and high efficiency with the hydraulic feeding

2. As the ball type chuck and the driving rod, it can complete no-stopping rotating while the spindle relit.

3. The pressure indicator of bottom hole can be observed and the well conditions controlled easily.

4. Close levers, convenient to operate, safe and reliable.

5. Compact size and light in weight, easy to assemble, disassemble and transport, suitable for plains and mountain area.

6. The octagon shape section spindle can give more torque.



Application:

  1. Geological exploration, engineering geology investigation and kinds of survey holes in concrete structures.railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;

2. Coal mining exploration, Ore exploration;

3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5.Small-diameter hole foundation piling drilling

6. Diamond bits, hard metal bits and steel-shot bits could be selected to different layers

7. The rated drilling depth is 100m using dia. 75mm bit, and 180m using dia. 46mm bit. The drilling depth cannot exceed 110% of its capacity. The allowable maximum diameter of initial hole is 150 mm



Parameter





Drilling depth 150,180m
Initial hole dia. 42,43mm
Final hole dia. 150mm
Drill rod dia. 46,75mm
Angle range 90-75
Dimensions 1700X900X1500mm
Weight(without power unit) 550kg
Stroke 350mm

2.Swivel Head

Spindle speed(5-speed) 1010,790,470,295,140r/min
Spindle stroke 450mm
Upward displacement speed of idling vertical spindle 0.05m/s
Downward displacement speed of idling vertical spindle 0.067m/s
Spindle pull-down max 15KN
Spindle lifting capacity max 25KN

3.Hoist

Max.lifting capacity(single rope) 11KN
Lifting rotating speed 121,76,36r/min
Hoisting drum liner velocity(two levels) 0.66,0.31,1.05m/s
Drum dia. 140mm
Wire rope dia. 9.3mm
Wire rope capability 35m
Brake dia. 252mm
Brake belt width 50mm

4.Oil Pump

Model YBC-12/125
Rated pressure 12.5Mpa
Displacement 8ml/r
Rated speed 2000r/min

5.Power(diesel engine or mator)

Model(diesel engine) ZS1105
Rated power 13.2kw
Rated speed 2200r/min
Model(motor) Y160M-4
Rated power 11KW
Rated speed 1460r/min
