Product Details:
Payment & Shipping Terms:
|
| Model Number: | GK200 | Product Name: | Rotary Drilling Rig |
|---|---|---|---|
| Power Type: | Electric | Drilling Depth: | 200m |
| Open Hole Caliber: | 75--300mm | Usage: | Water Well Drill |
| Drilling Angle: | 90°~75° | ||
| High Light: | water well borehole drilling rig,water borehole drilling equipment |
||

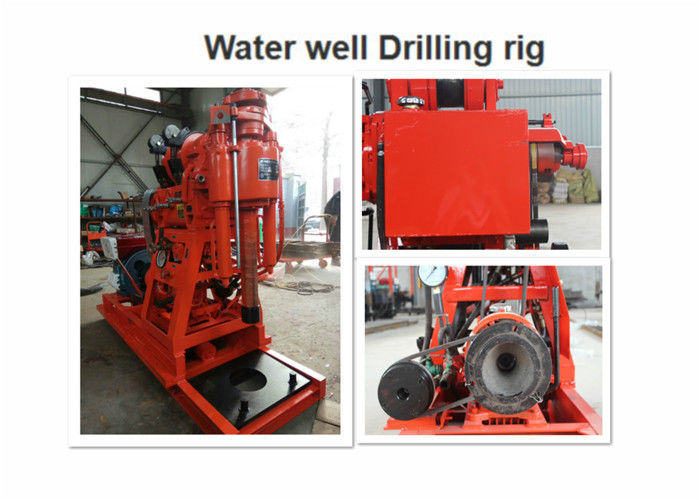

GK200 Water Well Drilling Rig Drilling Machine
Have 8 postive rotation gear,high speed,strong torque,widely scope of application.
Equip hydraulic chuck,it can complete no-stopping rotating.
Big inner diameter,use big or middle hexagonal driving lever.
Light in weight,easy disassembling for transportation and applicable to working
conditions in plain and mountain areas.
Suit scope
Geological exploration
water and electricity engineering
road and railroad construction,
build engineering and big diameter water well construction project etc.
| GK 200 Drilling Rig | |
| Drilling diameter(mm) | 75,91,110,130,150,300 |
| Drilling depth (m) | 200,150,100,70,50,30 |
| Drill pipe diameter (mm) | 42,50,60 |
| Drilling angle(°) | 90~75 |
| Equipment size(L * B * H) | 1433 * 697 * 1273 (mm) |
| Rig weight (except engine) | 525 |
| Mobile device | |
| Moving length | 350mm |
| Leave distance | 300mm |
| Gyrator | |
| Spindle speed (four gear) (r/min) | 115,230,505,1010 |
| Spindle travel(mm) | 450 |
| Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
| Spindle no load drop maximum movement speed(m/s) | 0.067 |
| Spindle maximum feed pressure(KN) | 15 |
| Spindle maximum lifting force(KN) | 25 |
| Spindle maximum output torque(KN• m) | 1.25 |
| Winch assembly | |
| Winch maximum lifting force (single rope) | 15 |
| Reel speed (r/min) | 19,38,84,168 |
| Reel circumferential speed(m/s) | 0.166 0.311 0.733 1.465 |
| Reel diameter(mm) | 140 |
| Wire rope diameter(mm) | 9.3 |
| Wire rope density (m) | 35 |
| Brake diameter(mm) | 252 |
| Brake band width (mm) | 50 |
| Pump type | Horizontal single cylinder double acting |
| Maximum displacement (motor)(L/min) | 95 (77) |
| The maximum allowable pressure (Mpa) | 1.2 |
| Work pressure (Mpa) | 0.7 |
| Cylinder diameter (mm) | 80 |
| Piston stroke(mm) | 100 |

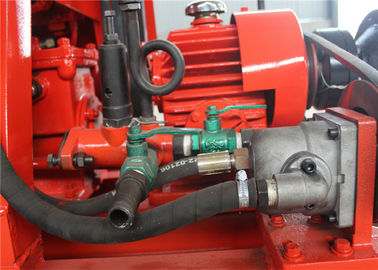

| Oil pump | |
| Oil pump type | YBC-20/125 |
| Nominal pressure (Mpa) | 12.5 |
| Rated flow(ml/r) | 20 |
| Rated speed(r/min) | 2000 |
| Diesel engine or motor | |
| Diesel engine | ZS1115 |
| Rated power (KW) | 16.2 |
| Rated speed (r/min) | 2200 |
| Rated pressure(Mpa) | 12.5 |
| Motor type | Y160M - 4 |
| Rated power (KW) | 11 |
| Rated speed (r/min) | 1460 |
