Portable Water Well Drilling Rigs GK200 Electric Power Type For Geological Exploration

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

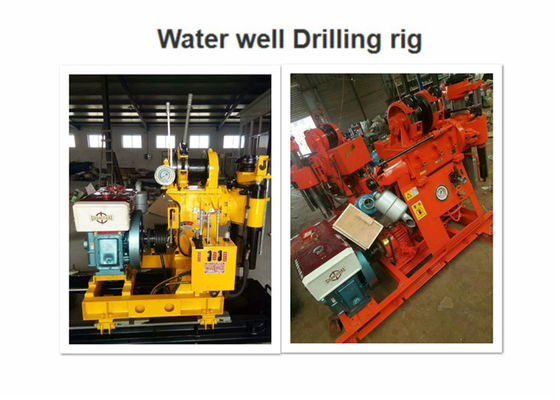

Portable Water Well Drilling Rigs GK200 Electric Power Type For Geological Exploration

Portable Water Well Drilling Rigs GK200 Electric Power Type For Geological Exploration
Portable Water Well Drilling Rigs GK200 Electric Power Type For Geological Exploration Portable Water Well Drilling Rigs GK200 Electric Power Type For Geological Exploration

Large Image :  Portable Water Well Drilling Rigs GK200 Electric Power Type For Geological Exploration

Product Details:

Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GK200

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Product Name: Portable Well Drilling Rig Power Type: Electric
Drilling Depth: 200m Open Hole Caliber: 75--300mm
Model Number: GK200 Place Of Origin: Hebei , China (Mainland)
Usage: Water Well Drill Drilling Angle: 90°~75°
High Light:

water well borehole drilling rig

,

hydraulic water well drilling machine

Introduction of GK200 Portable Diesel Water Well Digging Machine



GK200 Portable Diesel Water Well Digging Machine has 8 postive rotation gear,high speed,strong torque,widely scope of application.

Features

Equip hydraulic chuck,it can complete no-stopping rotating.
Big inner diameter,use big or middle hexagonal driving lever.
Light in weight,easy disassembling for transportation and applicable to working
conditions in plain and mountain areas.

Suit scope

Geological exploration

water and electricity engineering

road and railroad construction,

build engineering and big diameter water well construction project etc.





Unity machine parameter
Drilling depth 600m
Open hole caliber 300mm
End hole caliber 75mm
Drilling angle 90°~65°
Drill weight (No include power)

1750kg(Electric Machinery)

1830kg(Diesel Engine)

Unity machine dimensions 2220×900×1800mm
Distance away from hole 280mm
Spindle
Speed
Forward 57 99 157 270 470 742 1024
Reverse 45 212
Stroke 560mm
Spindle inner diameter 96mm
Spindle lifting capacity 6000kg
hoist
Reel caliber 200mm
Hug floodgate belt width 90mm
Tightrope caliber 12.5mm or 14mm
Rell cubic measure 30m
Single line lifting speed 0.515 0.894 1.421 1.948m/s
Max single line hoisting capacity 3000kg
Oil pump
F532/F314 Duplex gear oil pump
Displacement front 32L/min pressure 20Mpa
behind 14L/min pressure 20Mpa
Power
Diesel engine 395Kz 27HP
Electric motor

Y180L-4 22kw
