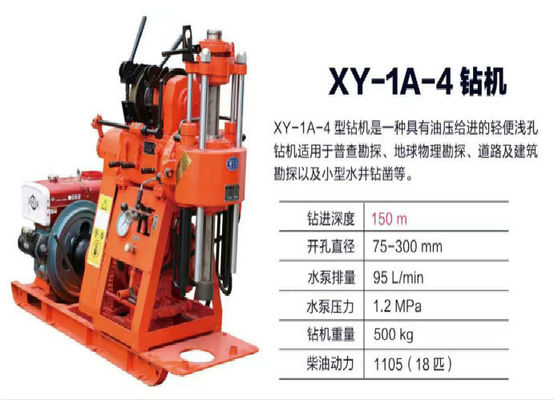

Deep Water Well Drilling Rig Compact Structure With 150 - 180M Drilling Depth

Deep Water Well Drilling Rig Compact Structure With 150 - 180M Drilling Depth
Deep Water Well Drilling Rig Compact Structure With 150 - 180M Drilling Depth

Large Image :  Deep Water Well Drilling Rig Compact Structure With 150 - 180M Drilling Depth

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Features: Easy Operation / Free Maintaining Type: Core Drilling Rig
Power Type: Diesel Model Number: XY-1A
Usage: Water Well Voltage: 220v
Drilling Depth: 150 - 180M Drilling Angle: 90-75°
High Light:

water well borehole drilling rig

,

water borehole drilling equipment

water well drilling rig XY-1A machine



Specifications



XY-1A water well drilling rig Drill depth:180m Drill diameter:220mm Easy to operate&transport Lightweight & compact structure



XY-1A water well drilling rig



Features of XY-1A High Speed Core Drilling Rig



a. the highest speed can reach 1045r/min, improving drill efficiency

b. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.

c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.

d. for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.

e. Vertical spidle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.





Applications



XY-1A drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees,earth temperature central air-conditioner,etc





Main parameters



Unity machine parameter
Drilling depth 150--180m
Drill rod caliber 50 42mm
End hole caliber 75 46mm
Max. open hloe caliber 220mm
Drilling angle 90°~75°
Drill weight (No include power) 610kg
Unity machine dimensions 2.1×0.9×1.3m
Spindle
spindle speed 130, 300, 480, 730, 830, 1045r/min
Spindle stroke 450mm
Hoist
Max.single line hoisting capacity 1600kg
Single line lifting speed 1.06, 0.67, 0.32m/s
Wirerope caliber 13mm
Wirerope cubic measure 35m
Hug floodgate caliber 254mm
Hug folldgate belt width 50mm
Distance between drill and hole 230mm
Mud pump
Type Horizontal single urn twin-action
Displacement 170L/min
Maximum pressure 1.5Mpa
Work pressure 0.7Mpa
Power
Diesle engine S1105 18HP
Electric motor Y160M—4 15KW
