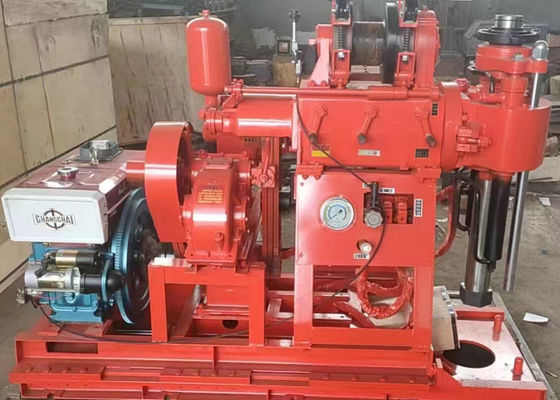

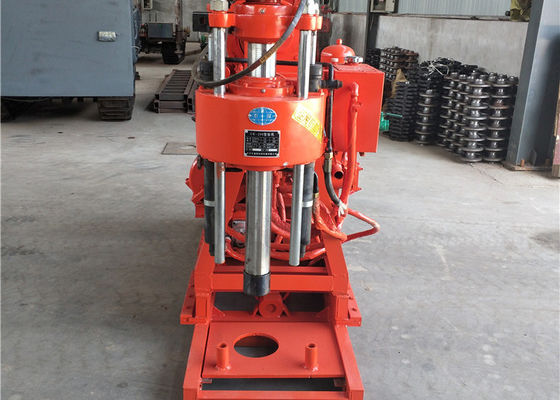

Popular Core Drill Rig 200m Drilling Depth For Mining Exploration CE Approved

Popular Core Drill Rig 200m Drilling Depth For Mining Exploration CE Approved
Popular Core Drill Rig 200m Drilling Depth For Mining Exploration CE Approved Popular Core Drill Rig 200m Drilling Depth For Mining Exploration CE Approved

Large Image :  Popular Core Drill Rig 200m Drilling Depth For Mining Exploration CE Approved

Product Details:

Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY200

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Model Number: XY200 Drilling Depth: 0-200m
Drilling Diameter: 75mm Drill Pipe Length: 4.2m
Usage: Mining Exploration Drilling Methold: Mud Drilling
Max Spindle Speed: 557rpm Engine Power: 22HP
Mud Pump: BW250/BW160 Drilling Angle: 90-75
High Light:

portable core drilling machine

,

geological drilling machine

Popular Core Drill Rig 200m Drilling Depth For Mining Exploration CE Approved







Specification

Unity machine parameter
Drilling depth 30--200m
End hole caliber 220-75mm
Drill rod caliber 50mm
Drilling angle 90°~75°
Drill weight (No include power) 910kg
Unity machine dimensions 2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed 64,128,287,557r/min
Spindle stroke 450mm
Hoist
Max .single line hoisting capacity 2400kg
Single line lifting speed 17,35,75,151r/min
Tightrope caliber 12.5mm
Tightrope cubic measure 35m
Hug floodgate caliber 254mm
Hug floodgate belt width 70mm
Distance between drill and hole 400mm
Mud pump
Type Horizontal single urn twin-action
Displacement 170L/min
Diesel engine S1115 Model 22HP
Electric motor Y160M—4 15kw 1440r/min
Maximum pressure 1.5Mpa
Work pressure 0.7Mpa
Water inlet caliber 40mm
Water to exit caliber 30mm
Triangle conveyer belt B1728mm



Application



XY200 hydraulic feed core drill is small and light weighted, mainly used in shallow and medium deep diamond tungsten carbide core drilling, can also be used in engineering geological, hydrogeological, water well and pile grouting hole drilling.

XY200 drill rig based on the ordinary drill increase drill shift chute, which can realize quick change tool to improve the work efficiency to reduce Labour intensity.



Characteristics



1. Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.
2. Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable.

3. Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock
4. Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer
5. The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance
