| Model Number: | XY-1 | Type: | Geological Drilling Machine |
|---|---|---|---|
| Final Hole Dia.: | 75mm | Power Type: | Diesel |
| Dimension(L*W*H): | 2.75*0.95*1.6m | Application: | Soil Sampling |
| High Light: | dth drilling machine,down the hole drill rig |
||

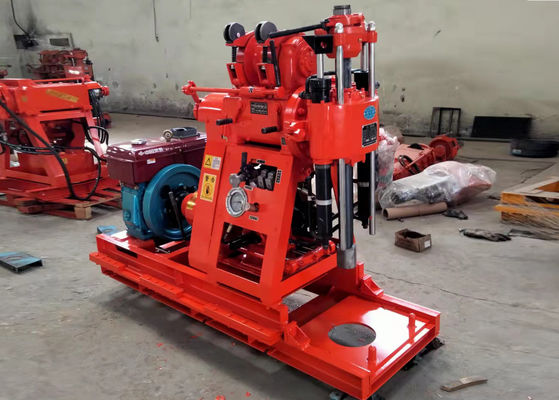

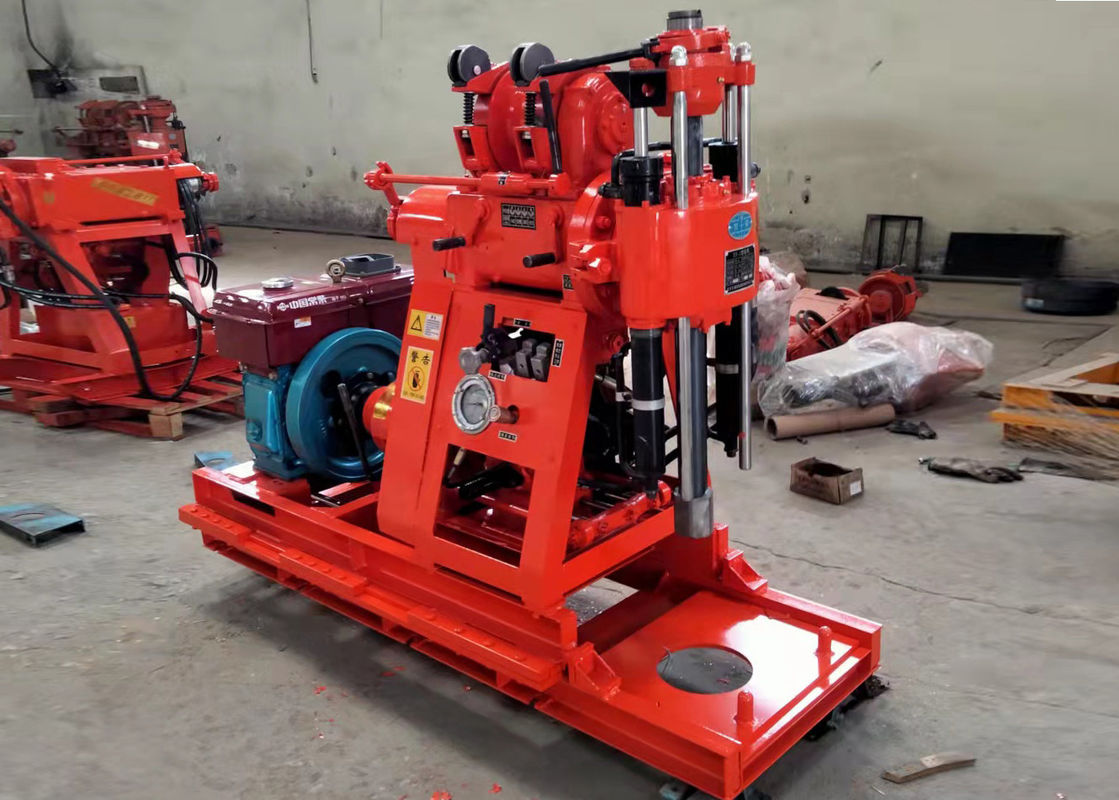

Multifunctional Geological Drilling Rig Machine , XY-1 Hard Rock Drilling Equipment
Description
Geological Drilling Rig Machine is a new-design light-weight, high efficiency mainly applied to drill drilling water Wells, agricultural irrigation Wells and other well, especially for the mountain area and rock stratum for water supply projects. The rig adopt new type hydraulic pressure technology, and match a complete set of hydraulic motor with high torque and large diameter cylinder turn of the hydraulic oil cylinder propulsion.
Technical and parameter
| XY-1 Rig Technical Specifications | |||
| Main technical parameters | Pump | ||
| Drilling depth(m) | 100m | Type | Gear pumps |
| Hole diameter | 110mm | Model | YBC-12/80 |
| The final hole diameter | 75mm | Rated pressure | 8Mpa |
| Rod diameter | 42-50mm | Flow | 8ml/r |
| Borehole inclination | 90°— 75° | Rated speed | 1500r/min |
| Rig Dimensions | 1640mm×1030mm×1440mm | ||
| (L×B×H) | |||
| Rig weight(Except the power machine | 500kg | Motor and diesel | |
| Gyrator | type | ZSⅡ00 | |
| vertical speed | 142,285,570r/min | Rated Power | 11KW |
| vertical stroke | 450mm | Rated speed | 2200r/min |
| vertical load up the maximum speed | 3m/min | Electric motor | |
| vertical load down the maximum speed | 4m/min | type | Y160M-4 |
| The maximum vertical force feed | 15KN | Rated Power | 11KW |
| The maximum vertical lifting force | 25KN | Rated speed | 1460r/min |
| Pump | |||
| Winches | Type | Horizontal single-cylinder double-acting | |
| The maximum lifting capacity ( a single rope speed ) | 10KN | The maximum displacement | 99(77)L/min |
| Reel speed | 55,110,220r/min | The maximum allowable pressure | 1.2Mpa |
| Roll peripheral speed | 0.42,0..84,1.68m/s | Working Pressure | 0.7Mpa |
| Reel diameter | 145mm | The number of strokes | 120(96)min |
| Rope diameter | 9.3mm | Liner diameter | 80mm |
| Rope capacity | 27m | Piston stroke | 100mm |
| Brake diameter | 230mm | ||
| Gate width | 50mm | ||
