| Model Number: | BW 850/2 | Type: | Hydraulic Mud Pump |
|---|---|---|---|
| Application: | Hole Drilling | Power Type: | Diesel/Hydraulic/Electric |
| Material: | Metal / Coil | Flow: | 850L/min |
| Pressure: | 2-3Mpa | Dimension: | 1000*995*650mm |
| Liner Diameter: | 85mm 65mm | ||
| High Light: | portable mud pump,reciprocating mud pump |
||

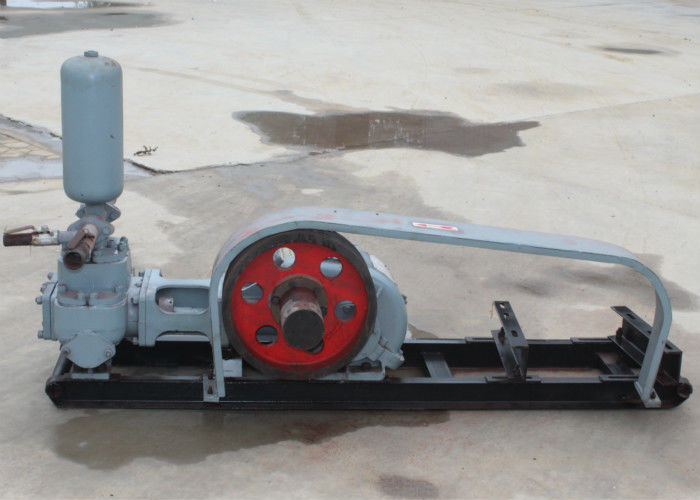

Deep Hole Drilling Mud Pump Double Cylinder BW Series Compact Structure
BW850/2 mud pump is horizontal double cylinder reciprocating double action piston pump. Max flow is 850l/min and max pressure is 2Mpa.
BW series mud pump is widely used in mining, drilling, coal, railway, highway, water conservancy and hydropower, bridges, high-rise buildings, foundation reinforcement works.
Advanced product design, reasonable structure, high pressure, flow, multi-file variable, energy saving, light volume, efficiency, plant life, safe operation, easy maintenance.
Main Features of mining slurry pump:
Compact structure, light weight, small volume, beautiful appearance, is driven by a hydraulic motor, electric power or diesel engine.
BW series slurry pump is horizontal triplex grout pump with high stability and high pressure.
Mud pump has gear shift to adjust the flow, large output capacity, simple operation.
High quality pump parts, less wearing parts, long service life, low construction cost.
It has fast suction-discharge speed, high pump efficiency.
Mud pump has less noise and dust, environmental operation.
| Model No.: | BW850/2 |
| Cylinder diameter | 150 mm |
| Piston Stroke | 180 mm |
| Number of Strokes | 82, 58 Num./min |
| Displacement | 850, 600 litre/min |
| Pressure | 2.0, 3.0 mpa |
| Speed of V-Belt wheel | 470 rpm |
| Power input | 40/54 kW (hp) |
| Diameter of suction pipe | 127mm (5”) |
| Diameter of discharge pipe | 63.5 mm (2-1/2”) |
| Overall dimensions (LxWxH) | 2000 x 1030 x 1400 mm |
| Weight | 1450 kg |
Application
BW850/2 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground.
BW850/2 mud pump are mainly used for irrigation agricultural machinery.the main characteristic is the high pressure,lift much,less engergy consumption,easy operation,high quality and duarable,easy to move,especially for mountain terraces of irrigation.
BW850/2 type mud pump is a horizontal triplex single acting reciprocating piston pump, which has two bore and fourth gear speed. Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application,the deepest can be used with 1800meters driling rig,it also can be used cement perfusion.
They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.
