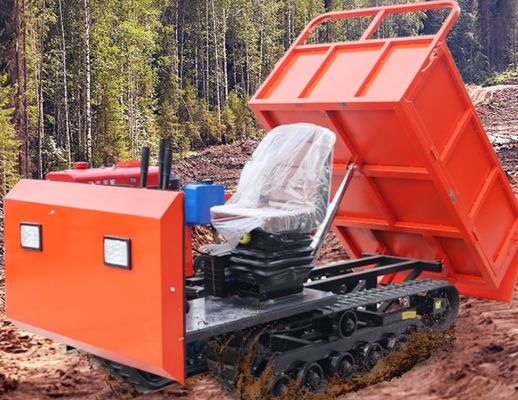

Customized Track Transporter Crawler Type 2 Ton Mini Self Loading Tracked Dumper

Customized Track Transporter Crawler Type 2 Ton Mini Self Loading Tracked Dumper
Customized Track Transporter Crawler Type 2 Ton Mini Self Loading Tracked Dumper

Large Image :  Customized Track Transporter Crawler Type 2 Ton Mini Self Loading Tracked Dumper

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Name: Self Loading Mini Dumper Color: Red Orange Green
Track Heigt: 555mm Track Width: 350mm
Track Length: 4500mm Dumper Size: 3550*1600*1850mm
High Light:

small tracked dumpers

,

mini crawler dumper

 Customized Track Transporter Crawler Type 2 Ton Mini Self Loading Tracked Dumper



Product Description


The crawler dumper is fit for heavy-duty, far and near transportation, completely configure, it runs steadily. The outlook is artistic, durable in use, working environment is widespread. The loading efficiency is high.


mini dumper Surface treatment: derusting with large size shot blast machine, to change welding stress.
Surface spray coating: ant rusting paint, finishing paint . mini crawler dumper
The process of welding: carbon dioxide MIG welding.



mini self-loading crawler dumper truck is a frequently-used of special track vehicle , it is widely used in agriculture, minerals, water conservancy and other large and medium-sized projects for earth, rock, coal and other displacement work. Crawler transport vehicles according to their product rated capacity (load capacity) can be divided into light crawler and heavy-duty crawler.





Main Features


1. Transport vehicles can operate freely in mud and icy roads
2. Self-unloading design, tracked walking, motor walking, greatly extended the use ability. mini crawler dumper
3. The specific size can be customized according to the requirements mini crawler dumper
4. Strong carrying capacity, large climbing ability, simple operation and easy maintenance.



2 ton dumpers parameter: mini crawler dumper



NO. Parameter Unit 2T
1 Dead weight kg 1900
2 Max load kg 2000
3 Max grade ability . 30
4 Total dimension mm 3550*1600*1850
5 Carriage dimension mm 2000*1600*400
6 Track width mm 350
7 Track length mm 4500
8 Track height mm 555
9 Track Type —— Agriculture Track
10 Engine Model —— Changchai
11 Cylinders Unit 1
12 Horsepower P 32
13 Engine Power kw 23
14 Cylinder bore mm 95
15 Cylinder stroke mm 750
