Product Details:
Payment & Shipping Terms:
|
| Name: | Track Dump Carrier / Mini Crawler Dumper | Feature: | Multifunction |
|---|---|---|---|
| Speed: | 5-7km/h | Track Ground Length: | 750mm |
| Load Capacity: | 300KGS | Track Specifications: | 180mm*60mm*34burl |
| High Light: | small tracked dumpers,mini crawler dumper |
||

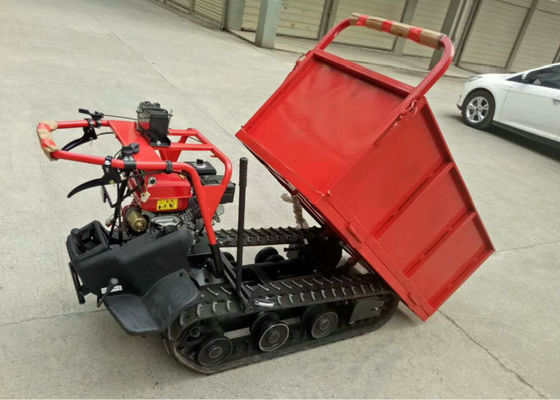

Little Tracked Power Barrow , Small Tracked Dumpers With Crawler 300KG Load Capacity
Mini dumper operation
Add fuel Manually add 93 # gasoline to the engine's fuel tank.
Start Engine Detailed description of engine operation, all relevant precautions and procedures can be found in the manual.
Cold start as follows
1. Open the position where the engine suction valve is completely blocked.
2. Place the throttle stick in the center of the handlebars.
3. Turn the engine switch to the ON position.
4. Pull the rope slowly to pump gas into the engine carburetor several times. Then pull the rope until the rope has resistance. Then quickly pull the rope while allowing the rope to gently return. Do not let the rope recover quickly until the engine starts.
Allow the engine to run for a few seconds before operating the machine.
operating
After starting the engine, increase the throttle to speed up. Shift can not stop walking but to reduce the throttle and then shift.
Operate the corresponding left handle or right handle to control the left or right turning of the machine. Turn the handle is very sensitive, when the machine is empty, only need to gently grip the steering handle. When the machine load, you need to use more force to grip the handle.
The maximum load of the mini transporter is 300kg. Speed can be adjusted according to the road conditions. When the machine is full, use low speed and careful driving. Avoid sharp turns and frequent changes as the minivan travels on the road. Use caution when the weather is bad, such as rain, snow, or icy roads. Because this will make the machine run unstable and thus dangerous. Idling speed
Turn off the machine when the machine is out of work and lowering the engine speed will help extend the life of the engine and save fuel and reduce machine noise.
Stop the engine
In an emergency, please release the red handle, the machine will stop walking, and then the engine is adjusted to "off" gear to stop the engine.
| Model | ZM300B |
| Gasoline Engine | 196cc 6.5HP |
| Transmission | 3F+1R |
| Load capacity | 300KG |
| Speed | 5-7km/h |
| Minimum ground clearance | 100mm |
| Car bucket L*W*H | 952-1092mm*640-920mm*210mm |
| Safe climbing angle | <25 |
| Track specifications | 180mm*60mm*34burl |
| Track ground length | 750mm |
| Track center distance | 500mm |
| Engine noise | 103db(A)±3db(A) |
| Net weight | 180KG |
