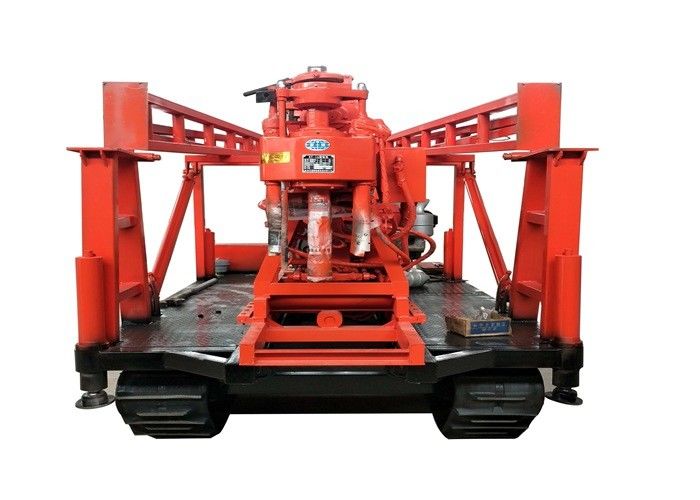

Small Water Well Drilling Rig Rotary Trailer Mounted 300m Depth 37KW Power

Small Water Well Drilling Rig Rotary Trailer Mounted 300m Depth 37KW Power
Small Water Well Drilling Rig Rotary Trailer Mounted 300m Depth 37KW Power Small Water Well Drilling Rig Rotary Trailer Mounted 300m Depth 37KW Power

Large Image :  Small Water Well Drilling Rig Rotary Trailer Mounted 300m Depth 37KW Power

Product Details:
Place of Origin: China
Brand Name: ST
Certification: ISO
Model Number: ST-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: 1, plastic bags inside,wooden boxes outside,or as customers'request 2, seaworthy packing
Detailed Product Description
Type: Farming Borewell 100m Water Well Drilling Rig Machinery Drilling Diameter(mm): 75,100
Drilling Depth (m): 100 Drill Pipe Diameter (mm): 42
Drilling Angle(°): 90-75 Equipment Size(L * B * H): 1640 * 1030 * 1440 (mm)
Model(diesel Engine): 1105 Rated Power: 18P
High Light:

water borehole drilling equipment

,

hydraulic water well drilling machine

Small Water Well Drilling Rig Rotary Trailer Mounted 300m Depth Drilling Rig

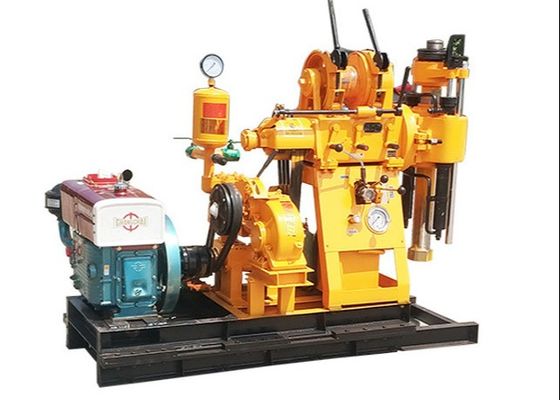

XY-1 Water Well Drilling Rig Information



XY-1 Small hydraulic core drilling rig is a kind of small-scale sampling and drilling equipment widely used in plains, mountainous areas and areas with inconvenient transportation and energy. It has the advantages of compact structure, small occupied area, light weight and convenient movement. It is suitable for geological sampling exploration, geological core drilling, small grouting holes, blasting holes, grouting holes, etc. in railway, water conservancy, water wells, construction projects and outdoor mountain areas. Diamond, composite and alloy bits can be selected for drilling according to different formations.



XY-1 Water Well Drilling Rig Technical Data



Drill Swivel Head

Drilling depth



Max.130m

Spindle speed



1010,790,470,295,140(r/min)

Hole diameter



Max.130mm Spindle stroke 450kmm
Drill rod diameter 42mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine ZS1105
Hoisting drum revolution

121,76,36(r/min)



Rated power 12.1KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm


XY-1 Water Well Drilling Rig Main uses:



◇ engineering investigation ◇ geophysical and geochemical exploration drilling sampling ◇ advanced drilling

◇ drilling and grouting ◇ pilot holes of embedded parts ◇ various blasting drilling ◇ inspection holes

◇ small household water wells ◇ regional geological survey ◇ mine vein exploration

◇ ore grade evaluation ◇ geotechnical engineering detection



XY-1 Water Well Drilling Rig Advantages



1. The drilling rig adopts automatic telescopic drilling rig with two high strength cylinders as support, and a group of hydraulic valves to control the drilling rig supine operation is time-saving, labor-saving, safe and reliable.
2. The chassis adopts rubber track, which is light in weight. It can reduce the noise of vehicle running mechanism, reduce the vibration of vehicle body, greatly reduce the fuel consumption, and can walk on urban roads without harming the road surface.
3. The chassis has hydraulic high legs, which can be used for leveling drill rigs, loading and unloading trucks, and can be used as auxiliary support when working.
4. The use of 24V electric starting diesel engine reduces the operator's labor intensity, especially in the cold season, when the starting of diesel engine is difficult, it shows great superiority.
5. This machine is equipped with BW-160 mud pump, which has high flow rate, high pressure and convenient maintenance.
6. Hydraulic pipe-twisting machine (75-168mm) can be installed to improve work efficiency and reduce labor costs.



Small Water Well Drilling Rig Rotary Trailer Mounted 300m Depth 37KW Power 0

Small Water Well Drilling Rig Rotary Trailer Mounted 300m Depth 37KW Power 1Small Water Well Drilling Rig Rotary Trailer Mounted 300m Depth 37KW Power 2Small Water Well Drilling Rig Rotary Trailer Mounted 300m Depth 37KW Power 3
