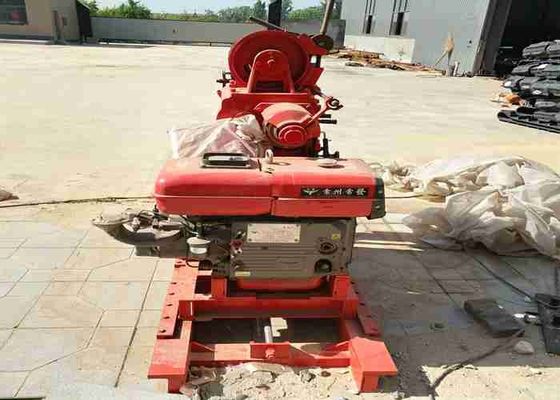

High Efficiency Rock Core Drilling Machine 200 Mm Diameter Diesel Power Type

High Efficiency Rock Core Drilling Machine 200 Mm Diameter Diesel Power Type
High Efficiency Rock Core Drilling Machine 200 Mm Diameter Diesel Power Type High Efficiency Rock Core Drilling Machine 200 Mm Diameter Diesel Power Type

Large Image :  High Efficiency Rock Core Drilling Machine 200 Mm Diameter Diesel Power Type

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST-200
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Type: Core Borehole Drill Rig Efficency: Higher
Color: Customer Required Power Type: Diesel
Voltage: 220V/380V Usage: Water Well,railways, Core Drilling
Drilling Depth: 200m Drilling Diameter: 50-300mm
Drilling Angle: 0-360 Product Name: Tractor Mounted Water Well Drilling Rig/core Drilling Machine,Hydraulic Drill Machine
High Light:

rock core drilling machine

,

geological drilling machine

High Efficiency Core Borehole Drill Rig With 200 mm Diameter For Drill




Product Description


ST-200 Core Borehole Drill Rig is high-speed vertical-shaft light drill for engineering exploration, and it has been widely applied to the geo - exploration of industry, civil building, railway, bridge, hydro power engineering, etc.



Technical data details:



ST-200 Core Borehole Drill Rig



Drilling Capacity

Drilling Diameter(mm) 300 76 46
Drilling depth(m) 25 135 200
Drill pipe diameter 42



Turnplate

Revolving speed 48 100 200 350 650 (R/Min)
MAX torque 2000Nm
Feed stroke 400mm



Pump

Rated speed 2500 r/min
Rated pressure 20Mpa
Max pressure 25Mpa



Brief introduction:



1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.

1.2 Geological core drilling, physical prospecting.

1.3 Small grout Confucius, drill hole drilling.

1.4 Small well drilling.

The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods. The utility model can perform no stopping and falling rod. And it has the advantages of high work efficiency, convenient operation, safety and reliability. It is compact, small in size, light in weight, strong in decomposition and easy to remove .



ST-200 Core Borehole Drill Rig Drilling ability:



a. Drill efficiency: 6-9 meters per hour for drilling soil

                            2-3 meters per hour for drilling rock

b. Geological structure: Soil, sandy, rock, hard rock,

c. Drill Diameter: 50mm, 100mm, 150mm ( based on customer detail requirement)

d. Max. Drill depth: 200 m



High Efficiency Rock Core Drilling Machine 200 Mm Diameter Diesel Power Type 0High Efficiency Rock Core Drilling Machine 200 Mm Diameter Diesel Power Type 1

High Efficiency Rock Core Drilling Machine 200 Mm Diameter Diesel Power Type 2High Efficiency Rock Core Drilling Machine 200 Mm Diameter Diesel Power Type 3High Efficiency Rock Core Drilling Machine 200 Mm Diameter Diesel Power Type 4
