Diesel Engineering Water Well Drilling Rig For Geological Coring 380V

China Diesel Engineering Water Well Drilling Rig For Geological Coring 380V supplier

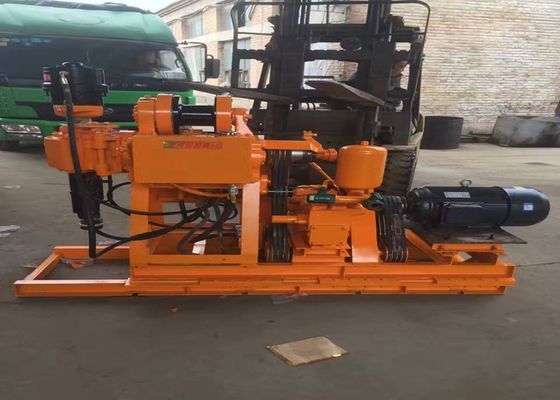

Large Image :  Diesel Engineering Water Well Drilling Rig For Geological Coring 380V

Product Details:

Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: ST-100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Condition: New Type: Core Drilling Rig
Power Type: Diesel Model Number: ST-100
Voltage: 380V Power(W): 15KW
Warranty: 1 Year

Made in China Engineering Water Well Drilling Rig for Geological Coring



Product Description:



1. Used for general investigation, geophysical exploration, highway and building construction, and blast-hole drilling etc.



2. With hydro-automatic feeding device, and high drilling efficiency.



3. Designed with hydrochucking unit instead of slips to ensure drilling from stop when changing pipes.



4. Close levers, convenient to operate, safe and reliable operations.



5. Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.



6. Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.



Product Parameter:



Main technical parameters   Pump
Drilling depth(m) 100m Type Gear pumps
Hole diameter 110mm Model YBC-12/80
The final hole diameter 75mm

Rated pressure



8Mpa
Rod diameter 42-50mm

Flow



8ml/r
Borehole inclination 90°— 75°

Rated speed



1500r/min

Rig Dimensions

(L×B×H)

1640mm×1030mm×1440mm

Rig weight(Except the power machine

)

500kg Motor and diesel
Gyrator   type ZSⅡ00
vertical speed 142,285,570r/min Rated Power 11KW
vertical stroke 450mm Rated speed 2200r/min

vertical load up the maximum speed



3m/min Electric motor
vertical load down the maximum speed 4m/min type Y160M-4
The maximum vertical force feed 15KN Rated Power 11KW
The maximum vertical lifting force 25KN Rated speed 1460r/min
    Pump
Winches

Type



Horizontal single-cylinder double-acting



The maximum lifting capacity ( a single rope speed )



10KN

The maximum displacement



99(77)L/min

Reel speed



55,110,220r/min

The maximum allowable pressure



1.2Mpa
Roll peripheral speed 0.42,0..84,1.68m/s Working Pressure 0.7Mpa
Reel diameter 145mm The number of strokes 120(96)min
Rope diameter 9.3mm Liner diameter 80mm
Rope capacity 27m Piston stroke 100mm
Brake diameter 230mm
Gate width 50mm
