| Product Name: | GK 200 Diesel Soil Investigation Soil Testing Drilling Machine | Driling Depth: | 200 Meters |
|---|---|---|---|
| Drilling Diameter: | 295mm | Application: | SPT Drilling,Exploration ,Water Well Drilling |
| OEM: | Acceptable | Color: | Yellow,blue,red |
| After Sale Service: | Video Support | Warranty: | 12 Months |
| Driven Type: | Diesel Engine | Voltage: | 220/110V |
| High Light: | soil testing drilling rig,soil investigation machine |
||

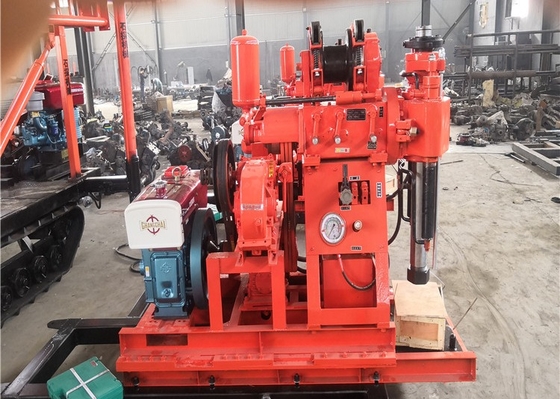

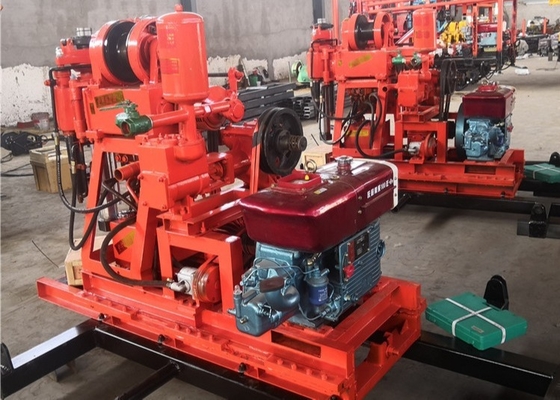

GK 200 Diesel Soil Investigation Soil Testing Drilling Machine
Product Description:
Gk-200-2 drilling machine is widely used and hydraulic feeding , which has the characteristics of large power, large lifting force (2T) and high transmission torque,Drilling rig for the general exploration and investigation of soild mineral deposit,engineering geotectonic survey and concrete structure inspection hole
Product Parameter:
|
Borehole diameter |
75,91,110,130,150,300mm |
|
Drilling depth |
200,150,100,70,50,30m |
|
Drill pipe diameter |
42,50,60mm |
|
Angle range |
90°-75° |
|
Size(L*W*H) |
1433*697*1273mm |
|
Weight(without power unit) |
525kg |
|
Gyrator |
|
|
Spindle speed(4-speed) |
71, 142, 310, 620r/min |
|
Spindle stroke |
450mm |
|
Upward max speed of spindle(no load) |
0.05m/s |
|
Downward max speed of spindle(no load) |
0.067m/s |
|
Max feeding force of spindle |
15KN |
|
Max lifting force of spindle |
25KN |
|
Max output torque of spindle |
1.25KN.M |
|
Hoist(winch) |
|
|
Max.lifting capacity(single rope) |
15KN |
|
speed |
19, 38, 84, 168r/min |
|
Hoist drum linear velocity(two levels) |
0.166, 0.331, 0.733, 1.465m/s |
|
Drum dia |
140mm |
|
Wire rope dia |
9.3m |
|
Wire rope capability |
35m |
|
Brake dia |
252mm |
|
Brake belt width |
50mm |
|
Oil pump |
|
|
Model |
YBC-12/125 |
|
Rated pressure |
12.5Mpa |
|
Displacement |
12ml/r |
|
Rated speed |
2000r/min |
|
Power(diesel engine or motor) |
|
|
Model(diesel engine) |
ZS1115 |
|
Rated power |
16.2kw |
|
Rated speed |
2200r/min |
|
model (motor) |
Y160-4 |
Product Advantages
Diamond drill bit,alloy drill bit and steel roller drill bit and so on are available for drilling according to different geological structure.
When the final hole are respectively 75mm and 46mm in diameter, the rated hole depths are 100m and 180m.The max of depth may not exceed 110% of that drilled in each hole. The max allowable hole diameter is 150mm
Features
With the hydraulic feeding mechanism,improve the drilling efficiency,reducing the labor intensity of workers.
The rig is equipped with a ball on a cassette holding mechanism and a six side rod, the rod can be replaced without shutdown, high work efficiency, safe and reliable
Furnished with hole bottom pressure gauge pressure indicator,and easy to master the status inside the hole
The handle centered, convenient operation.
The drilling machine has the advantages of compact structure,small volume,light weight,convenient move,decomposition and strong,suitable for the plains or mountain areas.
Adopting large Kelly,double guide pipe. Increase the stability .
Drilling Rig Applications
1. The drilling rig hydraulic transmission of the rig effectively utilizes the power. This makes the overall power loss small and the drilling cost low.
