Product Details:
Payment & Shipping Terms:
|
| Product Name: | 380V GK 200 Soil Test Drilling Rig Machine With Wheels For Geotechnical Exploration | Drilling Depth: | 200 Meters |
|---|---|---|---|
| Drilling Hole Diameter: | 295mm | Power Type: | Diesel Engine |
| Usage: | Water Well,Exploration | Voltage: | 380V |
| Warranty: | 1 Year | Color: | Yellow,Red And Blue |
| After Sale Service: | Video Support | Packing Type: | Wooden Box |
| High Light: | soil testing drilling rig,soil investigation machine |
||

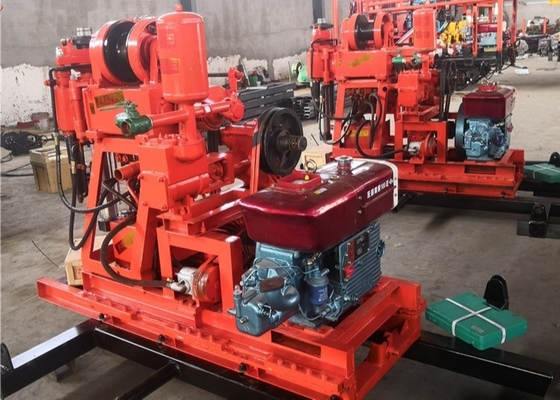

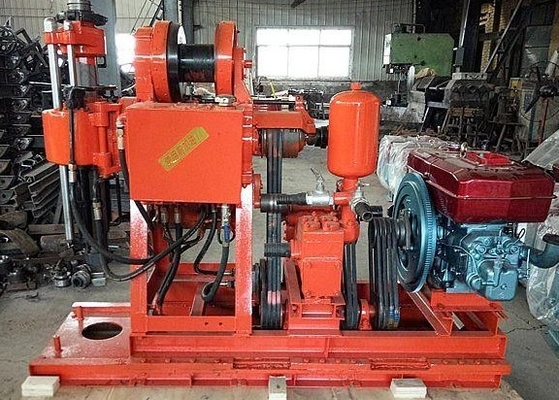

380V GK 200 Soil Test Drilling Rig Machine With Wheels For Geotechnical Exploration
GK 200 Drilling Rig Product Description
1. ST200 Soil Test Drilling Rig Machine for the general exploration and investigation of solid mineral deposit, engineering geotectonic survey and concrete structure inspection holes.zmwm02
2. Diamond drill bit, alloy drill bit and steel roller drill bit and so on are available for drilling according to different geological structures.
3. When the final holes are respectively 75mm and 46mm in diameter, the rated hole depths are separately 100m and 180m. The maximum of depth may not exceed 110% of that drilled in each hole. The maximum allowable hole diameter is 150 mm.
GK200 Drilling Rig Product Parameter:
| Drilling Dia | 70mm 93mm 150mm 200mm 300mm | ||
| Drilling Depth | 350m 280m 220m 120m | ||
| Swive Head | |||
|
Spindle Speed (r/min) |
Forward | 58 101 160 221 234 406 640 | |
| Reverse | 46 183 | ||
| Maximum Torque | 3000N*m | ||
| Spindle Stroke | 600mm | ||
| Maximum Cylinder lifting force | 60KN | ||
| Maximum Cylinder driving force | 45KN | ||
| Hoist | |||
| Bobbin Diameter | 200mm | ||
| Rope Diameter | 14mm | ||
| Rope Capacity(5 floor) | 45m | ||
| Lifting Capacity(single pipe) | 30KN | ||
| Bobbin line speed (the second layer) | 0.45 0.785 1.24 1.71m/s | ||
| Mobile Oil Cylinder Stroke | 460mm | ||
| Distance of Step Aside The Hole | 260mm | ||
| Oil Pump | |||
| Name | Wheel oil pump | ||
| Type | CB-E25 | ||
| Displacement | 25mL/min | ||
| Normal Rated Speed | 1500 r/min | ||
| Normal Pressure | 16MPa | ||
| Maximum Pressure | 20MPa | ||
| Power | Diesel Engine | Motor | |
| Type | 395K2 | Y180L-4 | |
| Rated Power | 20KW | 22KW | |
| Rated Speed | 1500r/min | 1470r/min | |
| Dimensions | 2510*950*1820mm | ||
| Weight(power not incluced) | 1300kg | ||
GK 200 Drilling Rig Main Features
1. Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
2. With hydro-automatic feeding device, and high drilling efficiency.
3. Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
4. Close levers, convenient to operate, safe and reliable operations.
5. Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
6. Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.
What are the safety precautions for geological exploration?
1. The geological exploration unit shall establish safety files for the geological exploration work area, including animal, plant and microbial injury sources, epidemic infectious diseases, epidemic infectious sources, natural environment, human geography and traffic conditions. The safety file information and preventive measures in the geological exploration work area shall be disclosed to the field operators in a timely manner.
2. Geological exploration units shall provide field survival guides and survival kits for field geological exploration operators, and provide effective radio communication equipment for field geological exploration project teams in difficult and dangerous areas.
