Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Core Drilling Rig |
|---|---|---|---|
| Power Type: | Diesel | Usage: | SPT Test |
| Voltage: | Diesel Engine Driven | Warranty: | 1 Year |
| High Light: | soil testing drilling rig,soil investigation machine |
||

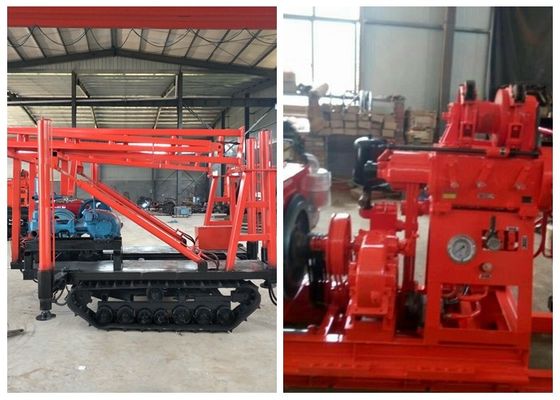

150m Depth Soil Test Drilling Machine Directly Supply for Civil Engineering
Product Advantage:
1. Compact structure of the whole machine with small dimensions meets the requirement of drilling in limited space and tunnel transportation.
2. With two optional drive modes of the drive unit, the drilling rig has a wide adaptability of strata.
3. Extendable mast (or optional box-type mast) is adopted to meet the requirement of long casing drilling construction, which improves the working efficiency.
4. Integrated visualized pressure feeding system can regulate the drilling pressure accurately according to the drilling depth.
5. With the configuration of 4 hydraulic supporting legs, it can realize rapid horizontal adjustment and transportation without crane.
Product Parameter:
| Model | ST-150 |
| Drilling Depth | 150m |
| Drilling Diameter | 75-220mm |
| Drill Pipe Diameter | 42-60mm |
| Drive Power | 13.2 KW |
| Weight | 740kg |
| Overall Dimension | 2.4*0.8*1.4m |
| Vertical Shaft | |
| Rotating Speed | 142/285/570r/min |
| Stroke | 450mm |
| Winch | |
| Max Pull Force | 20kN |
| Pull Speed | 0.41-1.64m/s |
| Rope Dia | 9.3mm |
| Drum Capacity | 27m |
| Drill Mast | |
| Rated Load | 18T |
| Height | 6.5 |
| Mud Pump | |
| Displacement | 95L/min |
| Working Pressure | 12 Bar |
| Times/min | 93 |
| Inlet Pipe Diameter | 51mm |
| Outlet Pipe Diameter | 32 mm |
