| Condition: | New | Type: | Water Well And Core Drilling Machine |
|---|---|---|---|
| Power Type: | Diesel Or Motor | Voltage: | 220V/380V |
| Power(W): | 16.2kw | Warranty: | 6 Months |
| High Light: | soil testing drilling rig,soil investigation machine |
||

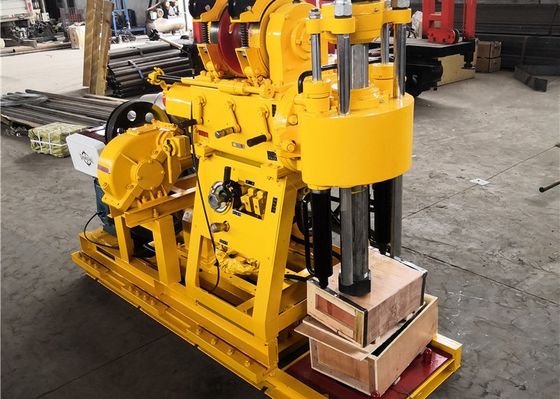

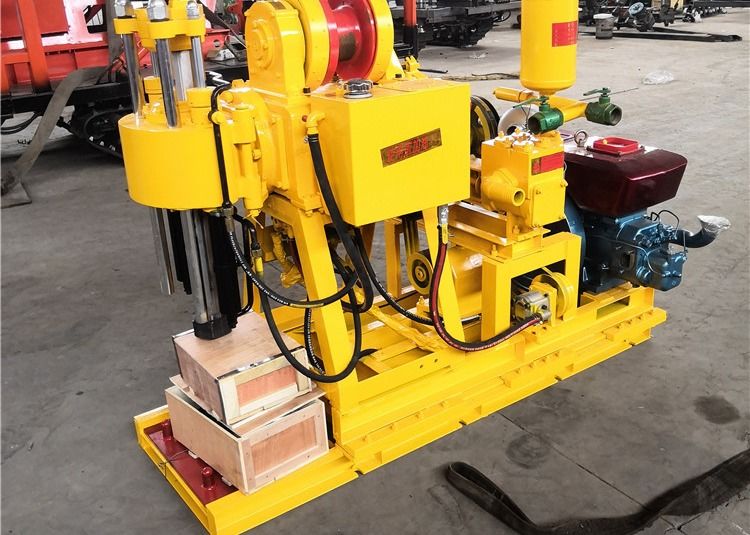

Hot Sale Soil Test Borehole Core Drilling Rig for Mineral Prospecting
Product Features:
1. The drilling rig works at higher speed and rational speed range. More speed levels and large torque in low speed. it’s suitable for small diameter diamond core drilling, and can also meet the requirements of large diameter carbide core drilling and a variety of engineering drilling.
2. Simple and lightweight,so it’s convenient to remove and operate in a mountainous area.
3. Reliable structure and reasonable arrangement, all parts are exposed and independent to make the daily care, maintenance and repair easier.
4. The drill has two reversal speeds, in order to the labor deal with the accident more conveniently and safer.
5. The drill is stable to move, fixed and supported firmly, it has a low gravity center and can drill in high speed with good stability.
6. Equipped with observing apparatus to better know the hole situation. Less operating grips in reasonable layout, flexible to operate.
7. The drill and slush pump can drive separately, the operating site is flexible with less space occupying.
Product Parameter:
| Drilling Rig | |
| Drilling diameter(mm) | 75,100 |
| Drilling depth (m) | 100 |
| Drill pipe diameter (mm) | 42 |
| Drilling angle(°) | 90-75 |
| Equipment size(L * B * H) | 1640 * 1030 * 1440 (mm) |
| Rig weight (except engine) | 500 |
| Gyrator | |
| Spindle speed (four gear) (r/min) | 142,285,570 |
| Spindle travel(mm) | 450 |
| Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
| Spindle no load drop maximum movement speed(m/s) | 0.067 |
| Spindle maximum feed pressure(KN) | 15 |
| Spindle maximum lifting force(KN) | 25 |
| Spindle maximum output torque(KN• m) | 0.5 |
| Winch assembly | |
| Winch maximum lifting force (single rope) | 10 |
| Reel speed (r/min) | 55,110,220 |
| Reel circumferential speed(m/s) | 0.42,0.84,1.68 |
| Reel diameter(mm) | 145 |
| Wire rope diameter(mm) | 9.3 |
| Wire rope density (m) | 27 |
| Brake diameter(mm) | 230 |
| Brake band width (mm) | 50 |
| Water pump | |
| Pump type | Horizontal single cylinder double acting |
| Maximum displacement (motor)(L/min) | 95 (77) |
| The maximum allowable pressure (Mpa) | 1.2 |
| Work pressure (Mpa) | 0.7 |
| Cylinder diameter (mm) | 80 |
| Piston stroke(mm) | 100 |
| Oil pump | |
| Oil pump type | YBC -20/125 |
| Nominal pressure (Mpa) | 12.5 |
| Rated flow(ml/r) | 20 |
| Rated speed(r/min) | 800-2500 |
| Diesel engine or motor | |
| Diesel engine | ZS 1100 |
| Rated power (KW) | 16.2 |
| Rated speed (r/min) | 2200 |
| Rated pressure(Mpa) | 12.5 |
| Motor type | Y160 - 4 |
| Rated power (KW) | 11 |
| Rated speed (r/min) | 1460 |
