Easy to Operate Geological Drilling Rig Machine For Core Borehole Drilling

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

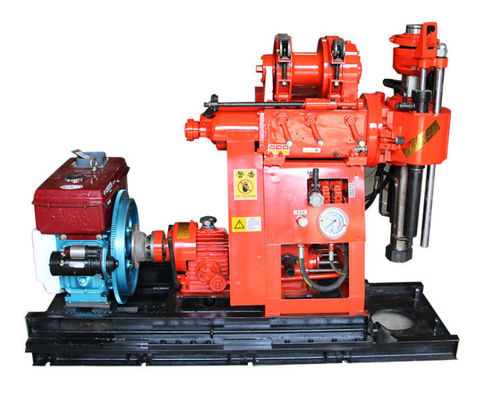

Easy to Operate Geological Drilling Rig Machine For Core Borehole Drilling

Easy to Operate Geological Drilling Rig Machine For Core Borehole Drilling
Easy to Operate Geological Drilling Rig Machine For Core Borehole Drilling

Large Image :  Easy to Operate Geological Drilling Rig Machine For Core Borehole Drilling

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: ST-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Condition: New Type: Rotary Drilling Rig
Power Type: Diesel Usage: Water Well
Voltage: 380V Power(W): 15KW
Dimension(L*W*H): 746*315*229mm Weight: 985kg
Certification: ISO9001
High Light:

dth drilling machine

,

water borehole drilling machine

Easy to Operate Geological Drilling Rig Machine For Core Borehole Drilling​



Product Application:



1. Drillings for the general exploration and investigation of solid mineral deposit, engineering geotectonic survey and concrete structure inspection holes.



2. Diamond drill bit, alloy drill bit and steel roller drill bit and so on are available for drilling according to different geological structures.



3. When the final holes are respectively 75mm and 46mm in diameter, the rated hole depths are separately 100m and 180m. The maximum of depth may not exceed 110% of that drilled in each hole. The maximum allowable hole diameter is 150 mm.



Product Features:



1. With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.



2. The rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replaced without shutdown, high efficiency, safe and reliable.



3. A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole.



4. Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.



Product Parameter:



1. DRILLING CAPABILITY
Drilling Dia(mm)
300
76
46
Drilling Depth(m)
45
180
230
Spindle Turning Angle
0-360
2. ROTARY Head
Speed(rpm)
60 200 400 610 1100
Max Torque
1800N•m
Feeding Travel
450mm
Cylinder Max Feeding Force
20kN
Cylinder Max Lifting Force
30kN
3. Hoist
Bobbin Diameter
125mm
Steel Rope Diameter
11mm
Bobbin Rope Capacity
26m
Single Rope Capacity
24kN
Max Hoisting Speed Single Rope(2nd Layer) m/s
0.2 0.72 1.26 2.8
4. Oil Pump
Model
CBF-F420-ALPL Gear Oil Pump
Displacement
20l/min
Rated Speed
2500 r/min
Rated Pressure
20Mpa
Max Pressure
25Mpa
5. Engine
(1) Diesel Engine
12.1 kW, 2200r/m, 155kg, Changchai ZS1100
(2) Electric Motor
11 kW, 1460r/m, 123kg, Y160M-4
6. Dimension(LxWxH)
1610x790x1420 mm
7. Weight(not include the engine)
500kgs

Easy to Operate Geological Drilling Rig Machine For Core Borehole Drilling 0
