High Pressure BW 160 Piston Portable Customzied Drilling Mud Pump For Water Well and Exploration

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

High Pressure BW 160 Piston Portable Customzied Drilling Mud Pump For Water Well and Exploration

High Pressure BW 160 Piston Portable Customzied Drilling Mud Pump For Water Well and Exploration
High Pressure BW 160 Piston Portable Customzied Drilling Mud Pump For Water Well and Exploration High Pressure BW 160 Piston Portable Customzied Drilling Mud Pump For Water Well and Exploration

Large Image :  High Pressure BW 160 Piston Portable Customzied Drilling Mud Pump For Water Well and Exploration

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: BW-160/10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Product Name: BW 160 Piston Portable Customzied Drilling Mud Pump Structure: Piston Pump
Usage: Mud Pump Application: Drilling Mud Pump
Power: Electric, 11kw Fuel: Diesel
Pressure: High Pressure OEM: Acceptable
After Sale Service: Video Support Warranty: 12 Month
High Light:

portable mud pump

,

reciprocating mud pump

High Pressure BW 160 Piston Portable Customzied Drilling Mud Pump For Water Well and Exploration





Product Description



1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor power, It has simple operation, convenient, can achieve close range or remote control.

2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy,stable performance, good general and so on.

3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonableconfiguration parameters selection,The construction technology can satisfy different requirements.

4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.



Product Tech Data



MODEL

BW-160/10

TYPE

Horizontal, Triplex, Single Acting Reciprocating pump

STROKE (mm)

70

LINER DIA. (mm)

70

STROKES (min-1)

200 132 83 55

DISPLACEMENT (L/min)

160 107 67 44

PRESSURE (Mpa)

2.5 4 6.5 10

INPUT POWER (kW)

11

SUCTION PIPE DIA. (mm)

51

DISCHARGE PIPE DIA.(mm)

25

DRILLING HOLE DEPTH

Diamond Core Drilling <1000m

DIMENSION (mm)

1400X850X950

WEIGHT

380KG





Product Advantages



BW-160 mud pump is a portable mud pump. The pump is a horizontal three-cylinder reciprocating single-acting piston pump with four flows and four pressures. The flow and pressure vary widely. The pump has the characteristics of small volume, light weight, long service life, simple operation, flexibility and reliability, and many general and standard parts, which are light and flexible, and easy to move. It can be used for geological exploration and engineering exploration in railway, water, metallurgy, construction, geology and other industries with hole depth less than 1000m



Product Appication



1. BW-160/10 mud pump can be used for geological core drilling, chemical liquid transportation, mine drainage and soft foundation grouting;

2. It has four different flows and pressures, with a wide range of changes and applications;

3. Compact structure, light weight, small size, beautiful appearance, can be driven by hydraulic motor, motor and diesel engine;

4. The standardization and generalization of parts and components are high, and the maintenance operation is convenient;

5. Long service life and reliability of wearing parts.



Replacement method of piston cup of 160 single-cylinder mud pump



The replacement method of piston cup of 160 single-cylinder mud pump is to remove the limit sleeve and pressure plate, close the U-shaped valve at the end of the oil cylinder, and rotate it to be perpendicular to the oil cylinder. Select face control on the panel and push the piston back into the water tank by manual inching. Next, use the Allen key and crescent wrench to disassemble the piston. After the disassembly, take out the piston body with rope or other tools, and the disassembly is completed.

1. Grease the piston before installation, or put the piston into the water tank with the help of a rope. Align the connecting flange of the cylinder with the piston flange. Move the oil cylinder slightly, push a small part of the piston to be replaced into the concrete cylinder, and use a crescent wrench to align the flange connecting screw hole.

2. Screw on the bolts and tighten them once in sequence. After the first tightening, the second tightening must be carried out.

3. After tightening, jog repeatedly to make the piston and concrete cylinder better fit. Open the U-shaped valve that was closed during disassembly

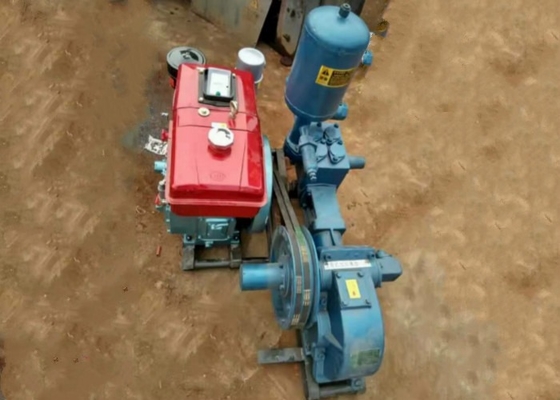

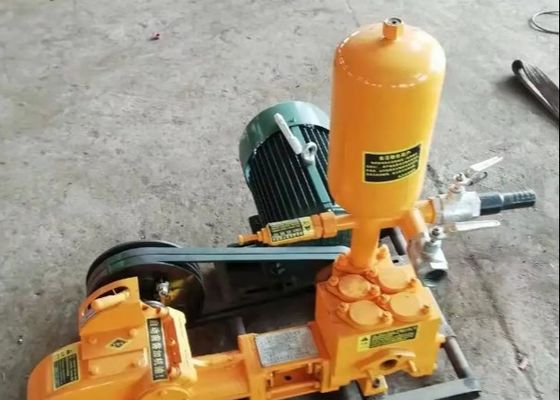

High Pressure BW 160 Piston Portable Customzied Drilling Mud Pump For Water Well and Exploration 0High Pressure BW 160 Piston Portable Customzied Drilling Mud Pump For Water Well and Exploration 1High Pressure BW 160 Piston Portable Customzied Drilling Mud Pump For Water Well and Exploration 2

High Pressure BW 160 Piston Portable Customzied Drilling Mud Pump For Water Well and Exploration 3

High Pressure BW 160 Piston Portable Customzied Drilling Mud Pump For Water Well and Exploration 4
