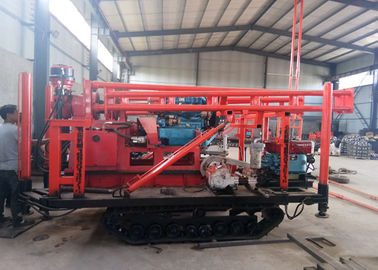

Four Wheel Basement Exploration Core Drill Rigs Drilling Rig For Geological

Four Wheel Basement Exploration Core Drill Rigs Drilling Rig For Geological
Four Wheel Basement Exploration Core Drill Rigs Drilling Rig For Geological Four Wheel Basement Exploration Core Drill Rigs Drilling Rig For Geological

Large Image :  Four Wheel Basement Exploration Core Drill Rigs Drilling Rig For Geological

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: ST-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Condition: New Type: Rotary Drilling Rig
Power Type: Diesel Usage: Water Well
Voltage: 380V Power(W): 15KW
Dimension(L*W*H): 746*315*229mm Certification: ISO9001
Power(w): 22P Drilling Diameter: 75-300mm
High Light:

dth drilling machine

,

water borehole drilling machine

Four Wheel Basement Exploration Core Drill Rigs Drilling Rig For Geological





Geological Drilling Rig Machine brief introduction



The core drilling rig is a wide range of lightweight core drilling rigs that are small, lightweight and easy to handle. Suitable for geological survey of railways, water conservancy, bridges, foundations and other buildings, geological core drilling, small grouting holes, blasting holes, water well drilling. According to the formation, diamonds, composite sheets and alloy drill bits are selected for drilling.



Geological Drilling Rig Machine parameter



Drilling depth 200m
Open hole diameter 75-300mm
End hole diameter 75mm
Active drill rod 53/59*4200mm
Rod diameter 50,60mm
Drill angle 90°-75°
Matched power(diesel power) 15kw/2200r/min
Dimension 2800*950*1700mm



Geological Drilling Rig Machine Product Application:



1. Drillings for the general exploration and investigation of solid mineral deposit, engineering geotectonic survey and concrete structure inspection holes.

2. Diamond drill bit, alloy drill bit and steel roller drill bit and so on are available for drilling according to different geological structures.

3. When the final holes are respectively 75mm and 46mm in diameter, the rated hole depths are separately 100m and 180m. The maximum of depth may not exceed 110% of that drilled in each hole. The maximum allowable hole diameter is 150 mm.



Advantage of this drilling machine:



1,Adopt auto vehicle transmission and cluth,good speed gear,easy operation.

2,Taper clutch with outstanding transmission torque, easy operation and maintenance-free features

3,With light structure,easy disassemble,convenient to move.

4,Four sets of bearing positioning of the vertical axle box ensure that the gyrator has sufficient rigidity to deal with complex geological conditions such as gravel layer and pebble layer.

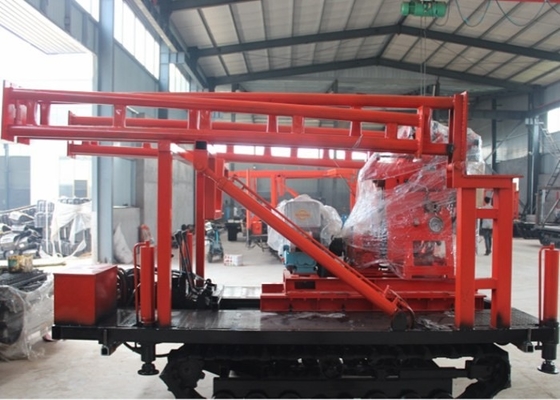

Four Wheel Basement Exploration Core Drill Rigs Drilling Rig For Geological 0Four Wheel Basement Exploration Core Drill Rigs Drilling Rig For Geological 1Four Wheel Basement Exploration Core Drill Rigs Drilling Rig For Geological 2Four Wheel Basement Exploration Core Drill Rigs Drilling Rig For Geological 3
