High Pressure Hydraulic Oil Drilling Mud Pump Three Cylinder BW150

High Pressure Hydraulic Oil Drilling Mud Pump Three Cylinder BW150
High Pressure Hydraulic Oil Drilling Mud Pump Three Cylinder BW150

Large Image :  High Pressure Hydraulic Oil Drilling Mud Pump Three Cylinder BW150

Product Details:
Place of Origin: China
Brand Name: JINZHOUSHITAN
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Model Number: BW150 Type: Mud Pump
Structure: Diaphragm Pump Usage: Air Pump
Application: DRILL RIG Power: Electric, 7.5kw
Fuel: Diesel Pressure: High Pressure
Max. Traffic: 150L/min
High Light:

portable mud pump

,

reciprocating mud pump

Three-cylinder Mud Pump BW150 for Water Well Drilling



Product Description:

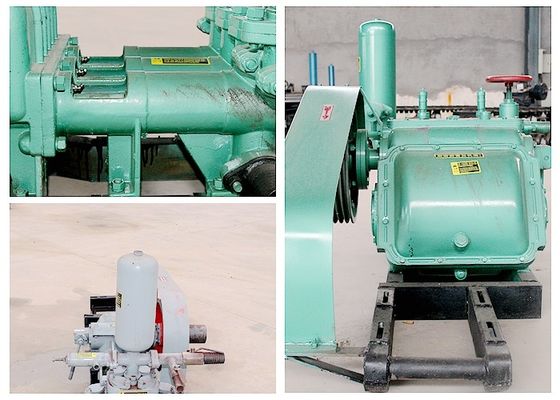

Mud pump is a horizontal three-cylinder reciprocating single-acting piston pump.


It is mainly used for core drilling rig supporting transportation slurry, also can be used for other aspects of grouting, mine drainage and long-distance water supply and other uses. The pump has low energy consumption, flexible operation, high quality and durability, good decomposability and easy relocation. Drilling cycle water power source.



Product Characteristics:



1. It has the four-block flow required to meet the requirements of large and small borehole drilling rigs. The flow adjustment range is large and the parameter selection is reasonable. It can meet the needs of different calibers, different hole depths, and different geological core drilling.



2. Dust-proof seals are provided on the drawbars to prevent the mud at the hydraulic end from entering the power end and the power end lube oil filter. After many production tests have proved that the seal is reliable and the performance is good. Causes the gear to extend its service life.



3. Intake and drain valves use steel balls. Noise reduction rubber pads are provided on the valve cover to reduce impact noise.



4. The pressure gauge uses seismic pressure gauges and has a long life.


5. Compact structure and beautiful appearance.


6. Detachable, easy to repair and relocate.

High Pressure Hydraulic Oil Drilling Mud Pump Three Cylinder BW150 0
