Rotary ST200 Water Well Drilling Rig , Borehole Mining Diamond Core Drilling Rig

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

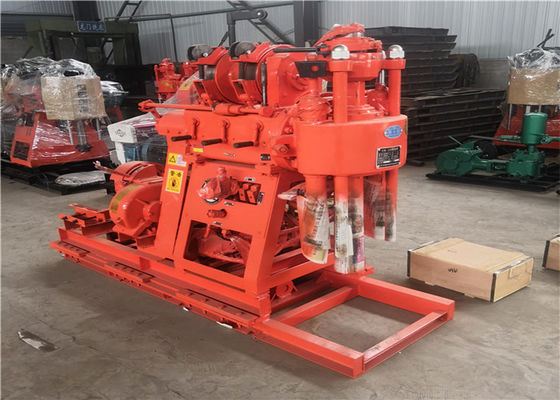

Rotary ST200 Water Well Drilling Rig , Borehole Mining Diamond Core Drilling Rig

Rotary ST200 Water Well Drilling Rig , Borehole Mining Diamond Core Drilling Rig
Rotary ST200 Water Well Drilling Rig , Borehole Mining Diamond Core Drilling Rig

Large Image :  Rotary ST200 Water Well Drilling Rig , Borehole Mining Diamond Core Drilling Rig

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4200-5000/set
Packaging Details: Plastic film and Standard export wooden box
Delivery Time: 7 working days
Payment Terms: L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability: 1800sets/year
Detailed Product Description
Drilling Depth: 200M Angle Range: 75°-90°
Drill Rod Diameter: 42,50,60mm Diesel Engine: 12.1KW
Rated Speed: 2200R/min Weight: 600kg
High Light:

water borehole drilling equipment

,

hydraulic water well drilling machine



Advance Quality ST200 Red Color Drilling Machine For Water Well Core Drilling Rig



Product Description

TheST-200 mobile drilling rig is a kind of widely used and hydraulic feeding drill, which has the characteristics of big power, great lifting force (2T) and high transmission torque. It can be used in engineering geological survey of railway, hydropower, transportation, bridge, foundation and other buildings, geological core drilling and physical exploration and so on.



Unity machine parameter
Drilling depth 200m
Max. open hloe caliber 300mm
Drilling angle 90°~75°
Drill weight (No include power) 610kg
Unity machine dimensions 2.1×0.9×1.3m
Spindle
Spindle speed 130, 300, 480, 730, 830, 1045r/min
Spindle stroke 450mm
Hoist
Max.single line hoisting capacity 1600kg
Single line lifting speed 1.06, 0.67, 0.32m/s
Wirerope caliber 13mm
Wirerope cubic measure 35m
Hug floodgate caliber 254mm
Hug folldgate belt width 50mm
Distance between drill and hole 230mm
Mud pump
Type Horizontal single urn twin-action
Displacement 170L/min
Maximum pressure 1.5Mpa
Work pressure 0.7Mpa
Power
Diesle engine S1105 18HP
Electric motor Y160M—4 15KW


Rotary ST200 Water Well Drilling Rig , Borehole Mining Diamond Core Drilling Rig 0
