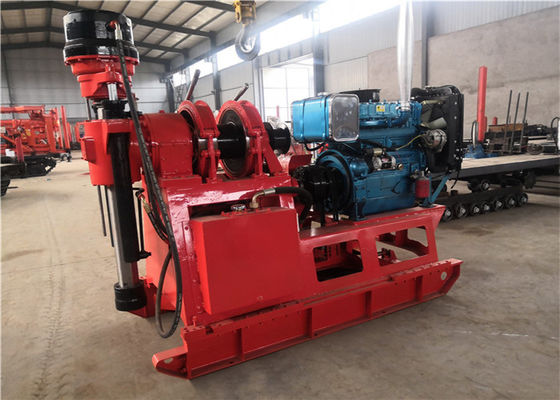

Portable Soil Drilling Machine For Soil Investigation And Geological Hammer XY -2

Portable Soil Drilling Machine For Soil Investigation And Geological Hammer XY -2
Portable Soil Drilling Machine For Soil Investigation And Geological Hammer XY -2

Large Image :  Portable Soil Drilling Machine For Soil Investigation And Geological Hammer XY -2

Product Details:

Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: ST-200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: Negotiation
Detailed Product Description
Power(W): Diesel Power Condition: New
Dimension(L*W*H): 2500*1000*1300 Mm Type: Rotary Drilling Rig
Power Type: Diesel Usage: Water Well
Voltage: 220V/380V, Can Be Customized
High Light:

water borehole drilling machine

,

down the hole drill rig



XY-2 Spindle Type Geological Drilling Machine, Water Well Drilling Rig,Diamond Coring Rig



Product Description:



Product Feature:



xy-2 is a core drilling rig for middle and shallow hole, especially for the soil test. It applies not only to alloy and diamond core drilling with different calibres but also can be used for geological prospecting works, drilling of fluid mineral in superficial layer and shot holes and ventilation holes drilling, drilling on hydrology, water wells and big calibres. It has been widely used on areas such as road and railway construction, water resources and hydropower and architecture.



Product Parameter:

XY-2 Spindle Type Geological Drilling Machine, Water Well Drilling Rig,Diamond Coring Rig



1.Unity Machine Parameter
Drilling Depth(m) 150~200m
Hole Diameter(mm) 75~200mm
Drill Rod Diameter 50
Drilling Angle 90~75
Drill Weight (No include power) 910kg
Overall Dimession 2750*950*1600mm
2.Spindle
Spindle Speed 64, 128, 287, 557r/min
Spindle Stroke 450mm
3.Hoist
Max. Single Line Hoisting Capacity 2000kg
Reel Lifting Speed 75, 151rm/s
Tightrope Diameter 13mm
Tightrope Cubic Measure 35mm
Hug Follgate Belt Width 70mm
Distance Between Drill and Hole 400mm

Portable Soil Drilling Machine For Soil Investigation And Geological Hammer XY -2 0
