Hydraulic High Performance 1 Ton Tracked Dumper With ISO9001 Certification

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

Hydraulic High Performance 1 Ton Tracked Dumper With ISO9001 Certification

Hydraulic High Performance 1 Ton Tracked Dumper With ISO9001 Certification
Hydraulic High Performance 1 Ton Tracked Dumper With ISO9001 Certification

Large Image :  Hydraulic High Performance 1 Ton Tracked Dumper With ISO9001 Certification

Product Details:

Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: 1T

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Type:: Micro Tracked Dumper Transmission Type: Manual Operation
Driving Type:: Left Hand Drive Engine Capacity: 1T
Application: Farm, Mining, Transport
High Light:

small tracked dumpers

,

mini crawler dumper


1 Ton Hydraulic High Performance Track Crawler Transporter


Product Description

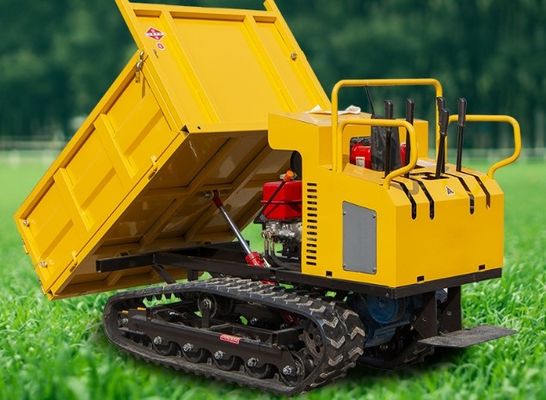

1 ton diesel crawler dumper with rubber track

Product Application

1 ton diesel crawler dumper with rubber track is a frequently-used of special track vehicle , it is widely used in agriculture, minerals, water conservancy and other large and medium-sized projects for earth, rock, coal and other displacement work. Crawler transport vehicles according to their product rated capacity (load capacity) can be divided into light crawler and heavy-duty crawler.

Main Features
1. Transport vehicles can operate freely in mud and icy roads
2. Self-unloading design, tracked walking, motor walking, greatly extended the use ability.
3. The specific size can be customized according to the requirements
4. Strong carrying capacity, large climbing ability, simple operation and easy maintenance.



Technical data for 1 ton diesel crawler dumper with rubber track

NO. Specification 1 Ton
1 dumper truck weight 1600kgs
2 Max load 1000kgs
3 Max grade ability 30°
4 Total dimension 3500*1600*1850mm
5 Hopper dimension 1900*1500*400mm
6 Track shoe width 350mm
7 Track length 4100mm
8 Track height 550mm
9 Track outside width 1600mm
10 Track inside width 900mm
12 Track Pitch 56mm
13 Number of tracks 75pcs
14 Track grounding length 1330mm
15 Track type Mechanical engineering rubber tracks.
16 Engine model CHANGCHAI
17 Cylinders 1 unit
18 Horsepower 12hp
19 Engine power 9kw
20 Overturning cylinder Single cylinder
21 Gear Three forward gears and a reverse gear
22 Walking speed

0-10km/h


1 Ton Hydraulic High Performance Track Crawler Transporter
Hydraulic High Performance 1 Ton Tracked Dumper With ISO9001 Certification 0
