Mobile Geologic Investigation Mining Well Drilling Equipment Portable Low Noise

Mobile Geologic Investigation Mining Well Drilling Equipment Portable Low Noise
Mobile Geologic Investigation Mining Well Drilling Equipment Portable Low Noise Mobile Geologic Investigation Mining Well Drilling Equipment Portable Low Noise

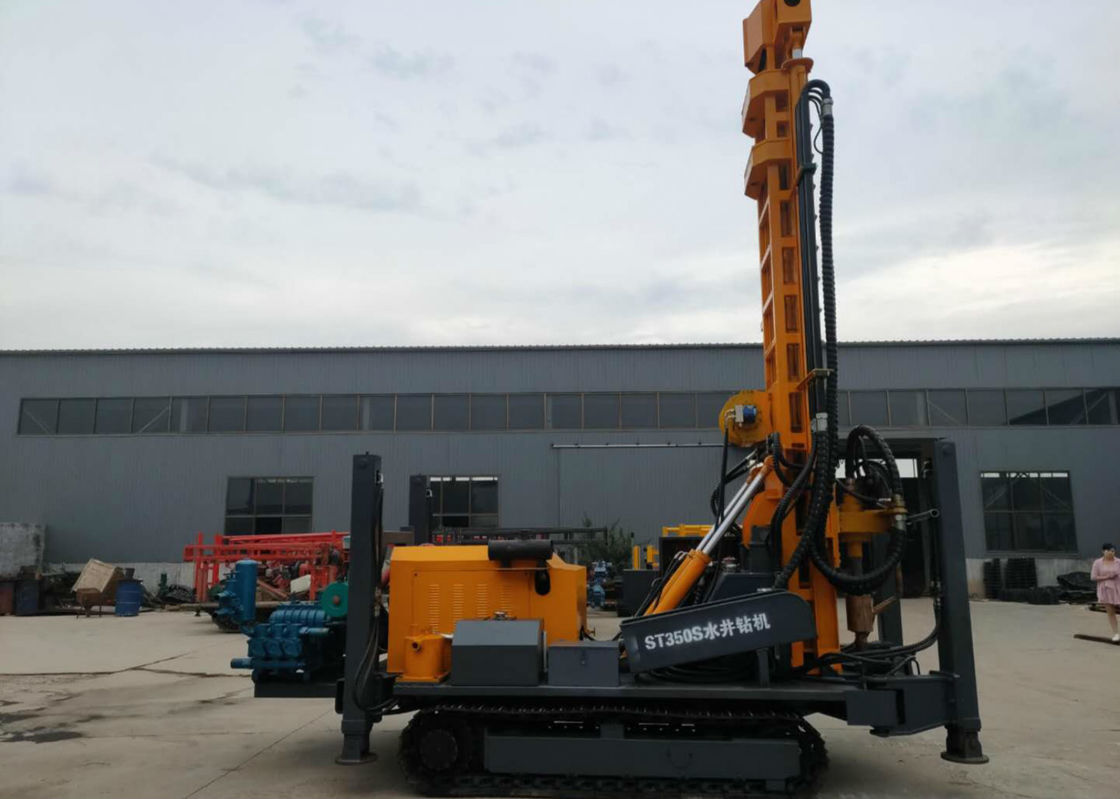

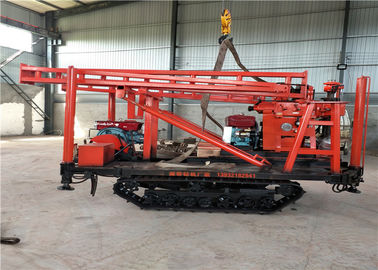

Large Image :  Mobile Geologic Investigation Mining Well Drilling Equipment Portable Low Noise

Product Details:

Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: gk-200

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Type: Hydraulic Water Well Drilling Machine Power Type: Diesel
Driving Way: Hydraulic Driving Usage: Geological Core Drilling
Weight:: 5500 Kg Voltage: 380V
Model Number: Gk-200 Name: Well Drilling Equipment
High Light:

hydraulic crawler drilling machine

,

track mounted drilling machine

Mobile Geologic Investigation Mining Well Drilling Equipment Portable Low Noise


Product Description


GK-200 mobile drilling machine is widely used and hydraulic feeding , which has the characteristics of large power, large lifting force (2T) and high transmission torque.



1 Application and scope

1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.

1.2 Geological core drilling, physical prospecting.

1.3 Small grout Confucius, drill hole drilling.

1.4 Small well drilling.

It has the features of big turning torque and big opening diameter. And it is compact, small in size, light in weight, strong in decomposition and easy to remove .



Geologic Investigation Mining Well Drilling Equipment Data



Drilling Rig
Drilling diameter(mm) 75,91,110,130,150,300
Drilling depth (m) 200,150,100,70,50,30
Drill pipe diameter (mm) 42,50
Drilling angle(°) 90~75
Equipment size(L * B * H) 1730 * 860 * 1360 (mm)
Rig weight (except engine) 700
Mobile device
Moving length 350mm
Leave distance 300mm
Gyrator
Spindle speed (four gear) (r/min) 115,230,505,1010
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 1.5
Winch assembly
Winch maximum lifting force (single rope) 20
Reel speed (r/min) 20,39,85,170
Reel circumferential speed(m/s) 0.172,0.345,0.738,1.476
Reel diameter(mm) 140
Wire rope diameter(mm) 9.3
Wire rope density (m) 40
Brake diameter(mm) 278
Brake band width (mm) 50
Oil pump
Oil pump type YBC -20/125
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-2500
Diesel engine or motor
Diesel engine 1115
Rated power (KW) 16.2
Rated speed (r/min) 2200
Rated pressure(Mpa) 12.5
Motor type Y160M - 4
Rated power (KW) 11
Rated speed (r/min) 1460
