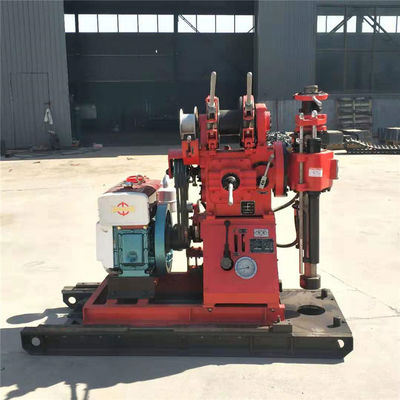

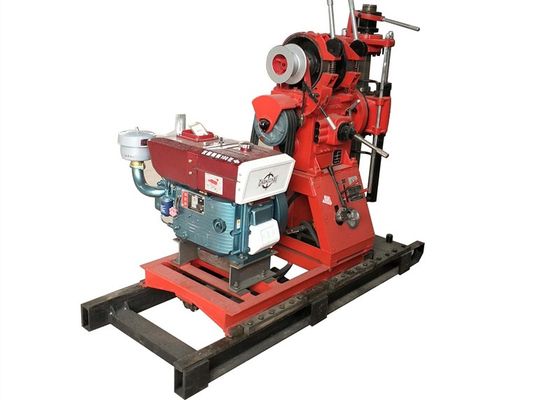

GXY-1C Engineering Drilling Rig Portable Hydraulic Core Drilling Equipment Mine Use

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

GXY-1C Engineering Drilling Rig Portable Hydraulic Core Drilling Equipment Mine Use

GXY-1C  Engineering Drilling Rig Portable Hydraulic Core Drilling Equipment Mine Use
GXY-1C  Engineering Drilling Rig Portable Hydraulic Core Drilling Equipment Mine Use GXY-1C  Engineering Drilling Rig Portable Hydraulic Core Drilling Equipment Mine Use

Large Image :  GXY-1C Engineering Drilling Rig Portable Hydraulic Core Drilling Equipment Mine Use

Product Details:

Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: GXY-1C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Condition: New Type: Core Drilling Rig
Power Type: Diesel Usage: Engineering Investigation
Warranty: 1 Year Name: Core Drilling Equipment
High Light:

hydraulic crawler drilling rig

,

hydraulic borehole drilling machine

150M Portable Hydraulic mine used Core Drilling Rigs equipment

Instrustion:

Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.

With hydro-automatic feeding device, and high drilling efficiency.

Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.

Close levers, convenient to operate, safe and reliable operations.

Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.

Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas

Specification:

Unity machine parameter
Drilling depth 150m
Drilling caliber 200mm
Drill rod caliber 50mm
Drilling angle 90°~75 °
Drill weight (No include power) 510kg
Spindle
Spindle speed 64 128 287 557 r/min
Spindle stroke 450mm
Hoist
Max.single line hoisting capacity 2400kg
Reel lifting speed 0.41 0.82 1.64m/s
Tightrope caliber 12.5mm
Tightrope cubic measure 35mm
Hug floodgate caliber 260mm
Hug floodgate belt width 70mm
Distance between drill and hole 450mm
Mud pump
Type Horizontal single urn twin action
Displacement 170L/mim
Power
Diesel engine S1115 15HP
Electric motor Y160M-4 11kw 1440r/min
Maximum pressure 3Mpa
Work pressure 1.5Mpa
Water inlet caliber 40mm
Water to exit caliber 30mm
Triangle conveyer belt

B1728mm
