Small Borehole Rock Core Deep Well Drilling Machine For 30-180m Depth

Name: Small Borehole Rock Core Deep Well Drilling Machine For 30-180m Depth
Brand: ShiTan
SKU: XY-1
Rating: 4.8 (192 reviews)

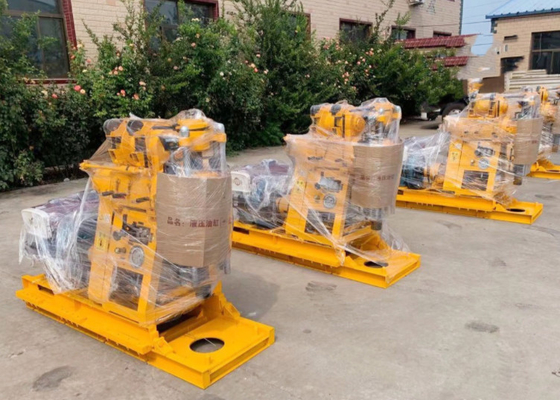

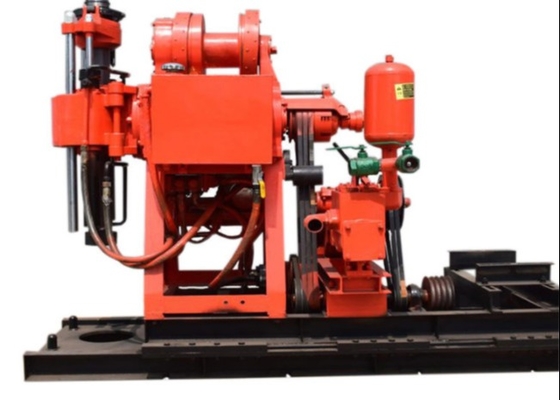

Large Image : Small Borehole Rock Core Deep Well Drilling Machine For 30-180m Depth

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	XY-1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	2000set/year

Contact Now

Detailed Product Description

Type:	Portable Core Drilling Machine	Power Type:	Diesel
Weight::	480kg	Usage:	Water Well,railways, Core Drilling
Drilling Depth:	30-180m	Dimension(LWH):	18008351150mm
Drill Pipe Diameter:	42mm
High Light:	rock core drilling machine , geological drilling machine

What is the Drill Rig detail?

First, the scope of use:
1. Used for census exploration, geophysical exploration, road and building exploration and blasting drilling and other drilling projects;
2. According to the different strata of the choice of alloy, steel grit and steel bit drilling;
3. Can drill 2-9 grade sandy clay and bedrock layer.
Second, the main features:
1. With automatic feeding into the body, high drilling efficiency.
2. The use of the ball card clamping mechanism instead of chuck, can be implemented without down the bar.
3. Handle centralized, easy to operate, safe and reliable.
4. Compact structure, rig, pumps and diesel engines are installed in the same chassis, the occupation of small venues.
5. Light weight, strong decomposition, easy to move, suitable for plain and mountain work.

1.The Drill Rig Information:

Drilling Depth:	100m,70m,50m,30m
The Hole Diameter	75mm,91mm,110mm
Kelly	52594200mm
Drill Pipe Diameter	42mm
Drilling Angle	90°-75°
Rig Dimensions(LengthWidthHeight)	1640mm1030mm1440mm
Weight (excluding power)	500kg
Swivel Head
Spindle speed(3-speed)	142/285/570 r/min
Spindle stroke	450
upward displacement speed of idling vertical spindle	0.05m/s
Downward displacement speed of idling vertical spindle	0.067m/s
Spindle pull-down max	15KN
Spindle lifting capacity max	25KN
Gyrator
The Vertical Speed (fore steps)	71,142,310,620 r/min
The Vertical Stroke	450mm
The Maximum Speed Of Vertical Load	0.05m/s
The Vertical Load Down The Maximum Moving Speed	0.067m/s
Max Feeding Force	15KN
Max Lifting	25KN
The Vertical Maximum Moving Speed	1.25 KN.M
Hoist
Max.lifting capacity(1-speed,single rope)	10KN
Cable volume (number) of hoisting drum	27m
Wire rope dia.	9.3mm
Mud Pump
Types	Horizontal reciprocating single-acting piston pump
Displacement max	95 L/min
Equipped with motor	77 L/min
Allowable working pressure max	1. 2Mpa
Continuous working pressure	0.7Mpa
Suction pipe dia	32mm
Discharge pipe dia	25mm

2,Drill Rod Size:

Size:	42mm	50mm	60mm
Grade:	R780	R780	R780
Wall Thickness:	6.5mm	6.5mm	7.1mm
Length:	3m/4.5m	3m/4.5m	3m/4.5m
Connection:	57mm	65mm	75mm
Application:	water well drilling, geological exploration, oil well drilling
