Product Details:
Payment & Shipping Terms:
|
| Type: | XY-1A | Size: | 150mm |
|---|---|---|---|
| Weight: | 650kg | Name: | XY-1A Type Water Well Equipment |
| Color: | Red/yellow/customized | Application: | Drilling Core/ Water Well |
| High Light: | water borehole drilling equipment,hydraulic water well drilling machine |
||

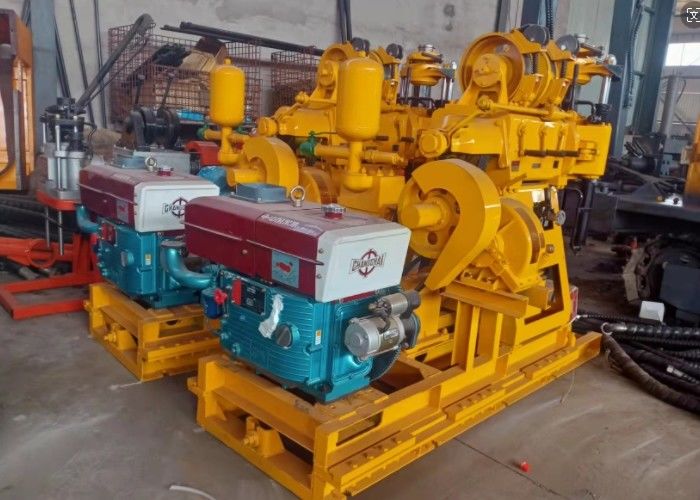

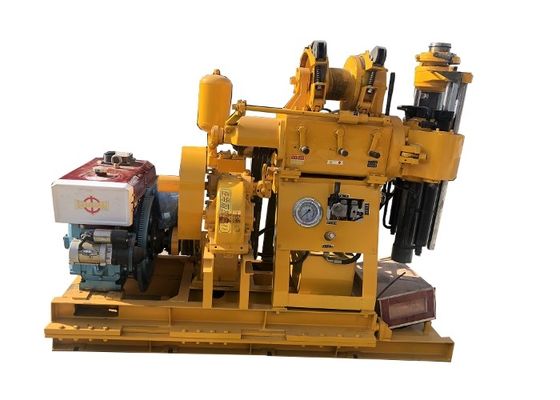

India XY-1A Type Water Well Equipment Drilling Depth 150M Opening Diameter 180 mm
Drilling machine to solve the problems of well drilling, geological exploration, soil testing, etc
XY-1A drilling rig is a kind of medium shallow hole core drilling machine. The utility model has the advantages of small size, light weight, large power and wide range. It is especially available for constructions of hydroelectric power station, highway, railroad and harbor etc.
Drilling depth:180m
Drill diameter:150mm customize
Easy to operate and transport
Lightweight and compact structure
Main Features:
1. Very powerful at soil, sand, hard rock, etc. land condition.
2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.
3. Hydraulic control system for greatly improving the working efficiency, saving labor force.
4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.
5. Power can be diesel engine or electric motor, as per your request.
Features of XY-1A hydraulic core drill
a. XY-1A has eight forward roation gears and two reverse rotation gears, high speed, strong stroke and wide scope of application.
b. Hydraulic chuck, can complete no-stopping rotating
c. Big inner diameter, able to use big or middle hexagonal driving lever
d. lightweight, can be easily disassembled for transport and apporiable to working conditions in plain and mountain areas
Applications of XY-1A hydraulic core drill
XY-1A drilling rig is mainly used for geological exploration, hydropower project, road and railway construction, buliding project and big diameter water well project,etc
XY-1A Type Water Well Equipment Drilling Depth 150M Opening diameter 150 mm technical parameter
| Drilling depth | 180m |
| Max open hole caliber | 150mm |
| End hole caliber | 75mm |
| Drill rod caliber | 60mm |
| Drilling angle | 90°~75° |
| Drill weight (without power) | 650kg |
| Triangle convert belt | B950 x 4 B1700 x 3 |
| The main machine moving distance | 300mm |
| Power | Diesel engine 22KW /Electric motor 15kw |
| Spindle | |
| spindle speed | 64, 128, 287, 557r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.lifting capacity | 2400kg |
| Single line lifting speed | 0.41, 0.82, 1.64m/s |
| Wire rope caliber | 13mm |
| Wire rope length | 35m |
| Reel diameter | 140mm |
| Hug floodgate caliber | 260mm |
| Hug floodgate belt width | 70mm |
| Mud pump | |
| Type | Horizontal single-urn twin-action |
| Displacement | Diesel engine 170L/min Electric motor 150L/min |
| Maximum pressure | 3Mpa |
| Work pressure | 1.5Mpa |
| Inlet pipe caliber | 40mm |
| Outlet pipe caliber | 30mm |
| Triangle convert belt | B1728mm |
| Hydraulic oil pump | |
| Type | XY-1A |
| Triangle convert belt | B1100 X 1 |
