| Material: | Diamond | Type: | Drill Bit,carbide Insert Bit |
|---|---|---|---|
| Machine Type: | Drilling Tool,Downhole Tools | Processing Type: | Forging |
| Use: | Water Well Drill Bit,water Well And Oil Well And So On | Application: | Rock Drilling,Water Well |
| Color: | Blue | Product Name: | PDC Diamond Bit Water Well Drilling Bit |
| Advantage: | High-efficiency,High Performance | ||
| High Light: | Geological Exploration drag bits,pdc drag bits,pdc drag bit drilling |
||

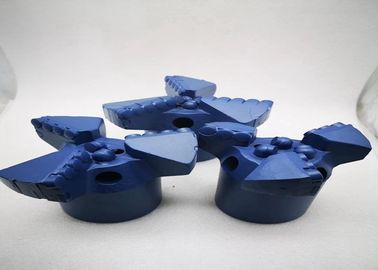

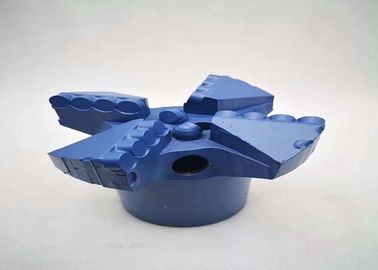

Longer Life Wear Resistance Pdc Hard Rock Drill Drag Bits For Geological Exploration
Diamond composite (PDC) bit, with diamond composite as the main cutting element, adopts the principle of scraping and shearing to carry out rock crushing, which is suitable for drilling in soft to medium hard stratum, and has better advantages in overcoming incomplete stratum drilling.By making full use of the high wear resistance and high impact resistance of diamond composite bit, it has the advantages of high life, high aging and high cost performance.
Functions and features
1. Application: soft to medium hard formation, mudstone, sandstone and intercalated limestone, reinforced and super-strong composite bit can be applied to super hard formation.Motor or rotary drill is available.The special design makes the stability of the drilling tool excellent.
2. Simple motor orientation: the bit adopts special cutting structure and straight blade design, which makes the bit work smoothly and the tool surface swing less when it slides into the hole.While rotary drilling can maintain a high rate of penetration.Thus, these design combinations ensure that their use effect is unmatched.
3. Highly smoothed cutting teeth: highly smoothed cutting teeth can reduce the friction resistance during cutting, quickly remove debris, significantly improve the cutting efficiency and thus improve ROP.
4. Stability features: the design features of different stability keep the drill bit in a stable state for most of the time when it works in the well, which can inhibit the vibration damage to the drill bit caused by BHA, operation or/and formation
Drill bit type classifications
| Drill bit types | |||
| Diamond composite drill bit | |||
| Coring drill bit | Uncoring drill bit | ||
| Coring drill bit | |||
| Rope drill bits (without core tubes) | Normal drill bit | ||
| Uncoring bit | |||
| Three-wing diamond composite bit | Four-wing concave diamond composite bit | ||
| Diamond composite drill bit | |||
| Ordinary composite bit | Reinforced composite bit or spherical/blade type | Super-strong composite bit | Helmet tooth type composite bit |
Common Specification:
Core bit diameter: Φ 59, 75, 91, 110, 130, 150, 171, 220, 245, 275, 325
Not PDC coring drill bit (3 wing, four wings) diameter: Φ 59, 65, 77, 94, 113, 133, 152, 171, 200, 220, 42 is also used for drill pipe can use 50 drill pipe, also can use 60 drill pipe.
The diameter of the above bit is the national standard interface, if you need a special interface or the diameter, please contact us to order.
