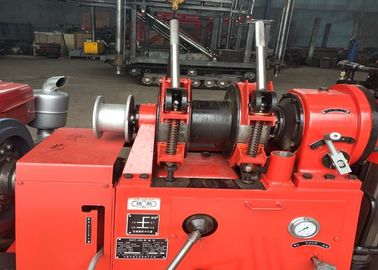

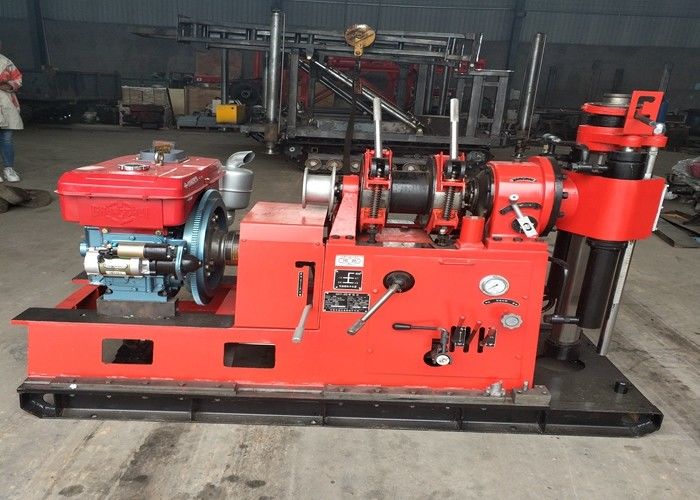

Applications of GK200 Drilling Rig For Geological Investigation and Exploration
GK-200 drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc
Technical Specification of GK200 Water Well Drilling Rig
| Drilling depth | m | 100 | 250 | 300 | 600 |
| Drilling DI | mm | 300 | 200 | 150 | 75 |
| Open hole DI | mm | 300 |
| End hole DI | mm | 75 |
| Drilling rod | mm | Φ60 |
| Drilling angle | | 90°-65° |
| Rotary Spindle |
| Spindle forward speed | r/min | 30-1050 |
| Spindle reverse speed | r/min | 29-137 |
| Spindle stroke | mm | 560 |
| Spindle inner diameter | mm | 96 |
| Spindle lifting capacity | KN | 60 |
| Main Winch ( drive hydraulic system) |
| Single line lifting speed | m/min | 0-45 |
| Hug floodgate belt width | mm | 90 |
| Tightrope diameter | mm | 14 |
| Hoist single line lifting capacity | KN | 40 |
| Roller diameter | mm | 200 |
| Roller cubic measure | m | 30 |
| Gear Oil pump |
| Duplex gear oil pump CBF-F63/25 |
| Front displacement/ pressure | | 63mL/r 20Mpa |
| Behind displacement/ pressure | | 25mL/r 20Mpa |
| Drilling rig Power |
| Diesel engine | Hp | R4105ZD 76HP |
| Electric motor | KW | Y180L-4 22KW
|
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
