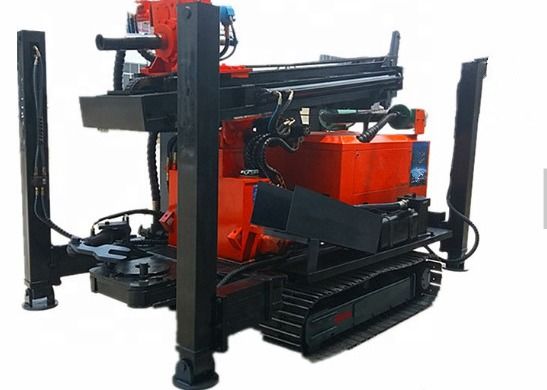

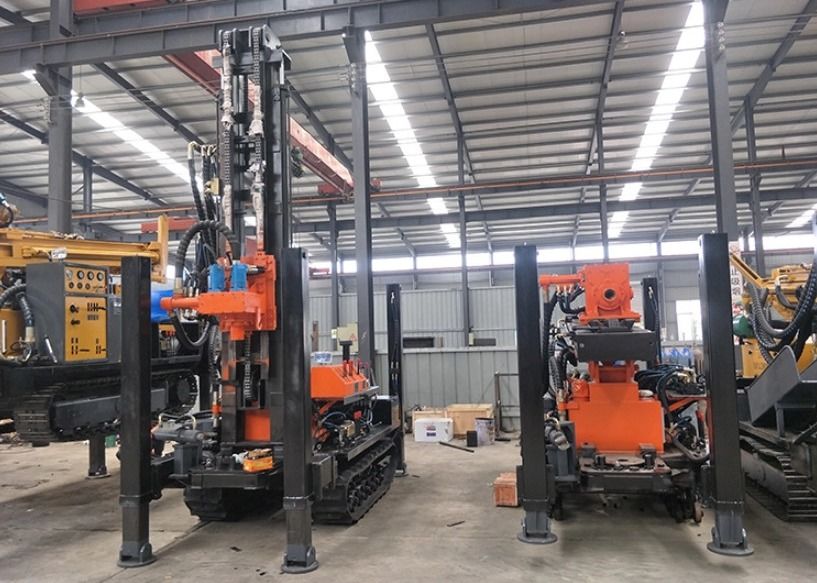

Water Well 180m Tractor Mounted Drill Rig Machine

Water Well 180m Tractor Mounted Drill Rig Machine
Water Well 180m Tractor Mounted Drill Rig Machine Water Well 180m Tractor Mounted Drill Rig Machine

Large Image :  Water Well 180m Tractor Mounted Drill Rig Machine

Product Details:

Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST18

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Type: Hydraulic Crawler Drilling Rig Color: Red Yellow
Feature: High Drilling Efficiency Usage: Water Well
Application: Soil Sampling Power Type: Diesel
Drilling Depth: 180 Drilling Angle: 90° ~75°
Warranty: 1 Year Voltage: 220V/380V
Length Of Drill Pipe(mm): 3m
High Light:

180m tractor mounted drill rig

,

180m tractor mounted rig

,

17mpa tractor mounted drill rig

Factory Direct Sale Tractor Mounted Water Well Drilling Machine In China





Product introduction



1.With oil pressure automatic feeding mechanism, improve drilling efficiency, reduce labor intensity.
2.The ball clamp mechanism is adopted instead of the chuck, which can carry out no-stop reversing, easy to operate, safe and reliable.
3.The hoist is equipped with a retainer to form a double-sided star wheel supporting structure, which can withstand strong impact.
4. Vertical axle box four groups of bearing positioning, to ensure that the rotary device is rigid enough to deal with the gravel layer, pebble layer and other complex geological conditions.
5.The machine adopts the taper clutch with national patent technology, which has the prominent features of large transmission torque, convenient operation and maintenance-free.



1. Applications



(1)widely used in drilling large diameter blast hole in mining, road, national defence,water conservancy and so on

(2)necessary drill equipment for prophase surface mine project



2. Characteristics



(1)light weight

(2)Suitable for the place where large and medium rock drill can not work

(3)Flexible, electric motor,noiseless and powerful

(4)Fast Drilling speed horizontal and vertical





3.Product parameters



Model YG-180
working wind pressure(Mpa) 17-31
Weight 10~20
Hole diameter(mm) 4500kg
Cost effective drilling depth(m) 180m
Feeding stroke(mm) 3000
Length of drill pipe(mm) 3m
Diameter of drill pipe(mm) Φ76
Maximum hoist capacity(N) 35000
Climb ability(°) 30
Walking speed(km/h) 1~3
Rotating speed(r/min) 0-96
Rotating torque(N.m) 2100
