Underground Water Well Diamond 200m Core Drill Rig Machine

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

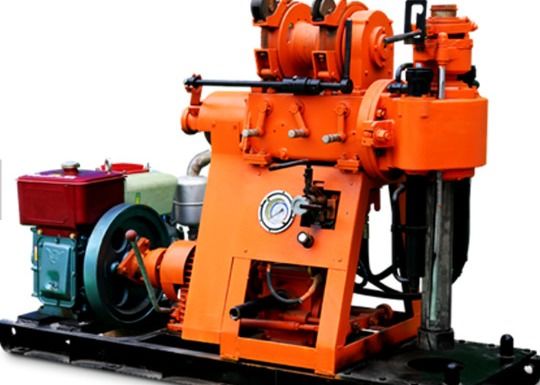

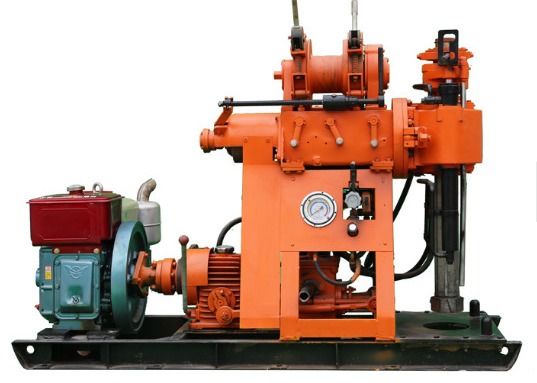

Underground Water Well Diamond 200m Core Drill Rig Machine

Underground Water Well Diamond 200m Core Drill Rig Machine
Underground Water Well Diamond 200m Core Drill Rig Machine Underground Water Well Diamond 200m Core Drill Rig Machine

Large Image :  Underground Water Well Diamond 200m Core Drill Rig Machine

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GK200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Portable Core Drilling Machine Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 30-200m Dimension(L*W*H): 1620*970*1560mm
Drill Pipe Diameter: 42mm Condition: New
High Light:

200m Core Drill Rig

,

Underground Core Drill Rig

,

200m water well drill rig

Water Well Machine GK-200 Diamond Core Drilling Rig





Product Description


Our Underground Core Drilling Equipment Used Water Well Drilling Machine for Sale, is aportable light weight drilling rig. This product is widely used for geological general investigation andexploration of railway, road, bridge, dam and tall building base, geological core drilling, small grouting holes, blasting holes, civil wells and earth central air conditioning wells,etc.



Main Features:



1) Compact structure, concentrated handle,small footprint, light weight, strong decomposition, and easy to move.

2) Feed by hydraulic cylinder, the drilling efficiency is higher and it can save labor.

3) The machine is equipped with our high technology taper clutch, it features strong torque transmission, easy operation and free maintenance.

4) Vertical spindle are fixed by four groups of bearings to ensure that the rotatory machine has enough rigid for gravel layer and other complex geological conditions.



Drill Rig Specification:



Drill rig specification
Drilling depth 200m
Drilling Diameter 91mm,110mm,130mm,150mm,300mm
Drilling rod diameter 50mm
Drilling Angle 90°-75°
Dimensions(L×W×H) 1750×850×1300 (mm)
Weight 880kg/set
Swivel Head
Spindle Speed 115, 230, 505, 790, 1010 r/min
Spindle stroke 450mm
Spindle Dia. Φ59mmx53mmx4350mm Kelly rod
Upward displacement speed of drilling vertical spindle 0.05m/s
Downward displacement speed of drilling vertical spindle 0.067m/s
Spindle pull-down max 15KN
Spindle lifting capacity max 25KN
Vertical maximum output torque 1.5KN.m
Hoist
Max. Lifting capacity(single rope) 20KN.m
Lifting rotating speed 20; 40; 90; 168r/min
Hoisting drum linear velocity (two levels) 0.17; 0.35; 0.73; 1.5m/s
Drum Diameter 140mm
Wire rope diameter 9.3mm
Wire rope capability 40m
Gear Pump
Model YBC-12/125
Rated pressure 12.5Mpa
Displacement 20ml/r
Rated Speed 2000r/min
Mud Pump
Type BW-160
Displacement 160 L/min
Working pressure 1.3 Mpa
Stroke 85mm
Drive shaft speed 951 r/min
Drive power 5.88KW
Diameter of inlet pipe 45mm
Diameter of outlet pipe 38mm
