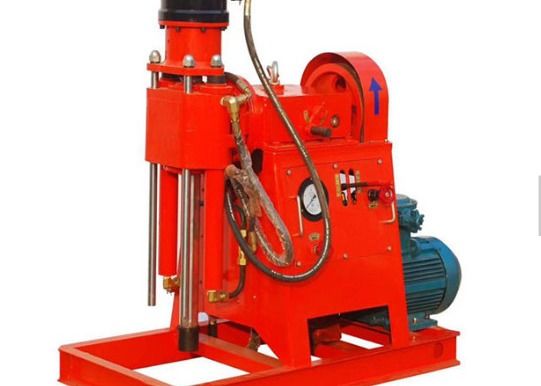

375r/Min Underground Mining 50 Meter Electric Drilling Rig

375r/Min Underground Mining 50 Meter Electric Drilling Rig
375r/Min Underground Mining 50 Meter Electric Drilling Rig
video play

Large Image :  375r/Min Underground Mining 50 Meter Electric Drilling Rig

Product Details:
Place of Origin: China
Brand Name: Shitan
Certification: ISO9001
Model Number: ZLJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Plastic film and Standard export wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Geological Drilling Rig Machine Weight: 600 KG
Geological: Soil, Rock, Hard Rock, Drilling Depth: 50-150 Meter
Type: Portable Type Application: Different Field Drilling
Voltage: 380V Color: Customer Required
Keyword: Underground Mining Drilling Rig Engine: Electric Engine Diesel
Highlight:

50 meter electric drilling rig

,

50 meter Mining drilling rig

,

375r/Min Electric Drilling Rig



High Efficiency Underground Mining Electric Drilling Rig





Product Description



Adopt mechanical transmission, simple structure, small volume, light weight, easy to operate, reliable performance, equipped with hydraulic chuck and hydraulic feed cylinder.
It is mainly used for water and coal exploration, gas drainage, dust-proof water injection and other purposes. It can also be used for ground geological exploration, building foundation reinforcement and other purposes of drilling.


Product Paramenters

Drill Pipe Diameter Φ42 mm
Drill Depth 150 m
Drilling Diameter Φ50 / Φ65 / Φ75 mm
Spindle Diameter Φ44 mm
Spindle Speed 120/214/375 (r/min)
Range of Borehole Angles 0-360°
Rope capacity of reel 30 m
Wire rope diameter Φ11mm
Oil pump type YBC-12/80
Rated pressure of oil pump 8Mpa
Rated flow of oil pump 12Mpa
Power 7.5 KW
Speed 1400r/min
Voltage
 380/660 V
Current 13.4/8.8 A
Weight 500 kg
Dimension(L×W×H) 1250×640×1265 mm

Features



It is suitable for drilling engineering of geological survey exploration, geophysical exploration and road and building exploration

Diamond, alloy, sand and grain drill bits can be selected according to the formation

It can drill into sandy clay and bedrock of grade 2-9

It can be used for drilling grouting holes, blasting holes and small column foundation holes

Suitable for drilling small Wells in arid areas



Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

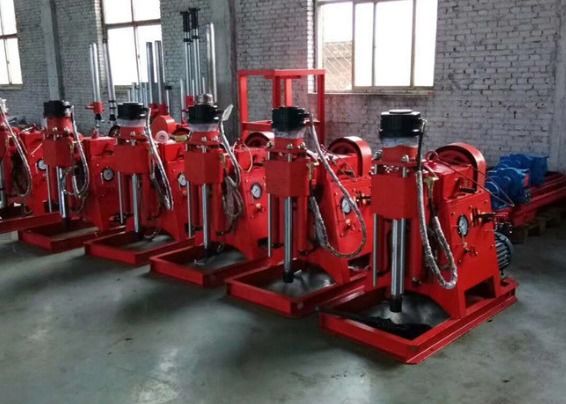

375r/Min Underground Mining 50 Meter Electric Drilling Rig375r/Min Underground Mining 50 Meter Electric Drilling Rig375r/Min Underground Mining 50 Meter Electric Drilling Rig

375r/Min Underground Mining 50 Meter Electric Drilling Rig375r/Min Underground Mining 50 Meter Electric Drilling Rig
