92kw 300m 140mm Dia Water Well Drilling Rig

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

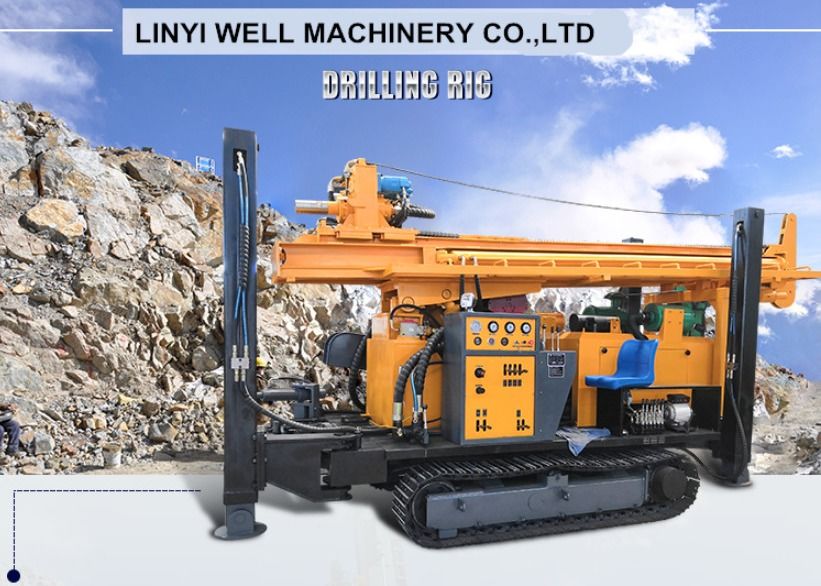

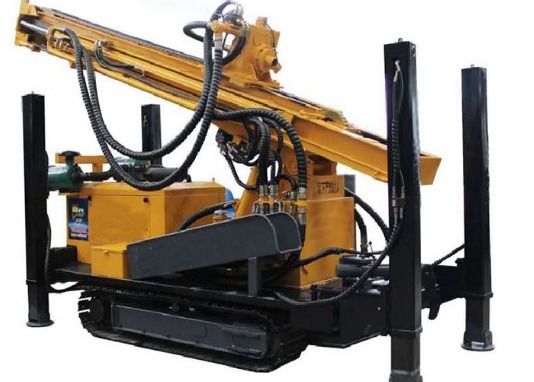

92kw 300m 140mm Dia Water Well Drilling Rig

92kw 300m 140mm Dia Water Well Drilling Rig
92kw 300m 140mm Dia Water Well Drilling Rig 92kw 300m 140mm Dia Water Well Drilling Rig

Large Image :  92kw 300m 140mm Dia Water Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: SHITAN
Certification: ISO
Model Number: ST300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Wooden case or naked
Delivery Time: 5-8days
Payment Terms: L/C, D/P, D/P, T/T, Western Union
Supply Ability: 100000/yes
Detailed Product Description
Drilling Depth: 100m/200m/300m/400m Application: Drilling Well,hammer For Drills
Type: Core Drilling Rig After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Weight: 9500KG
Power: 92 Usage: Water Well
Hole Diameter: 140-325mm Drill Rod Length: 1.5-6
High Light:

300m water well drilling rig

,

92kw water well drilling rig

,

140mm water well drilling rig

300m Portable Core Sample Deep Water Well Drilling Drill Rig For Sale





Brief introduction of water well drilling rig



ST300 series deep(water) well-drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.

Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.

Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.

The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

Features of water well drilling rig

ST300 model used water well drilling machine/tractor mounted water well drilling rig/drilling machine for sale is punctured equipment for light, efficient, versatile, it is mainly applied to bore hole drilling wells, geothermal air conditioning hole and other uses. The rig can create jobs in different formations, the max. hole depth of up to 300 meters The rig using a new type of hydraulic technology, supporting large torque hydraulic motor rotation and large bore hydraulic cylinder pushing, factory engine to provide power for the hydraulic system, the two stage air filter and air compressor air inlet design, prolong the service life of diesel engine.

Parameters of water well drilling rig

Technical Parameters of ST300 Crawler type water well drilling rig
type ST300
The weight 9T
Dimension 5900*2000*2850mm
The hole diameter 140-325mm
Drilling depth 300m
One-time advance length 6.6m
Walking speed 2.5KM/H
Climbing angles 30
Power 84KW
Using air pressure 1.7-3.3MPA
Air consumption 17-35
Drill pipe length 1.5m 2.0m 3.0m 6.0m
Drill pipe diameter 89mm,102mm,
Rig lifting force 20T
Swing speed 55-115rpm
Swing torque 6200-85000N.m
