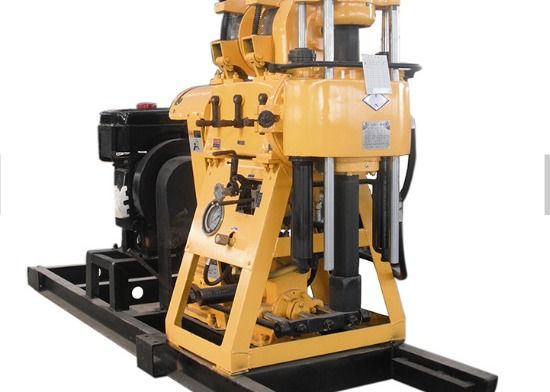

200M Diesel Engine Rock 15KW Hydraulic Well Drilling Rig Machine

200M Diesel Engine Rock 15KW Hydraulic Well Drilling Rig Machine
200M Diesel Engine Rock 15KW Hydraulic Well Drilling Rig Machine 200M Diesel Engine Rock 15KW Hydraulic Well Drilling Rig Machine

Large Image :  200M Diesel Engine Rock 15KW Hydraulic Well Drilling Rig Machine

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Model Number: GK200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Certification: ISO9001 Condition: New
Type: Rotary Drilling Rig Power Type: Diesel
Usage: Water Well Voltage: 380V
Power(W): 15KW Weight: 1200KGS
Drilling Depth: 200M Drilling Diameter: 35-350mm
High Light:

15kw hydraulic well drilling rig

,

200M Hydraulic Well Drilling Rig

,

620r/min Rotary Drilling Rig

GK200 Diesel Engine Rock Drilling Machine Water Well Drilling Rig





water well drilling machine for rock:



The description of Portable water well drilling rig bore well drilling machine price shitan series hydraulic drilling rig is a kind of widely used portable drill. It is suitable for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservancy, bridges, dam foundation and other buildings . According to different strata, it drills by choosing diamond, composite films and alloy.

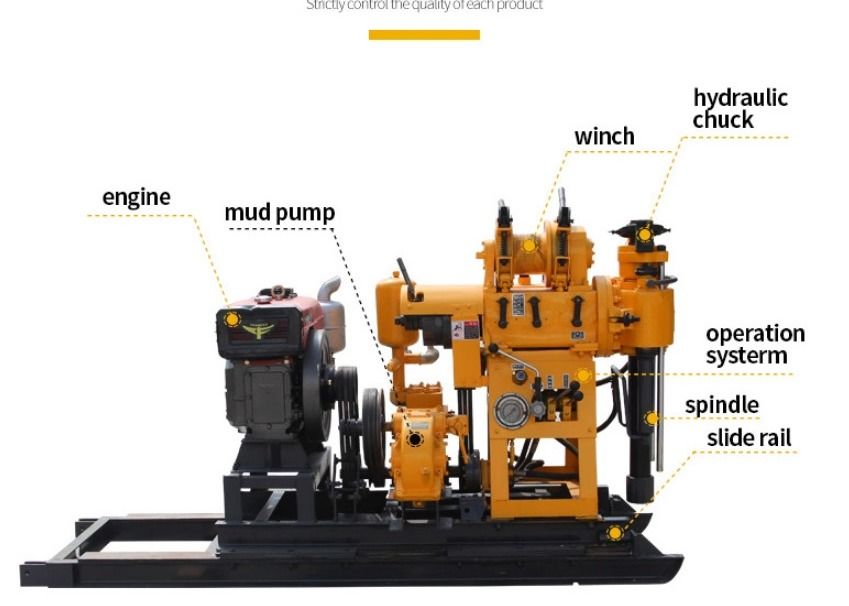

Features of core drill:



1,It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.
2,It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
3, It has hole bottom pressure gauge to be easy to master the situation in the hole.
4, It also has advantage of Compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountain areas.



Parameter:



Description Drilling depth 200m
  Open hole diameter 75-400mm
  End hole diameter 75mm
  Active drill rod 53/59*4200mm
  Rod diameter

50mm

(seamless steel tube)

  Drill angle 90°-75°



Gyrator

Spindle speed

64/128/325/620r/min

(4 speedadjustable)

  Max.Spindle torque 2200N.m
  Max.Spindle feed force 40000N
  Max.Spindle lifting force 80000N
  Spindle stroke 450mm



Engine

Diesel power 22HP(2200r/min)



Pump

Mud pump BW160



The product is specially used for geological survey exploration, basic exploration for road and highrise building, drilling inspection hole of various of concrete structures, construction for dyke and dam of the river, subgrade grouting hole drilling and direct grouting, civil well drilling, ground temperature central airconditioning construction, etc.



200M Diesel Engine Rock 15KW Hydraulic Well Drilling Rig Machine 0200M Diesel Engine Rock 15KW Hydraulic Well Drilling Rig Machine 1200M Diesel Engine Rock 15KW Hydraulic Well Drilling Rig Machine 2
