Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001 | Condition: | New |
|---|---|---|---|
| Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Usage: | Water Well | Voltage: | 380V |
| Power(W): | 15KW | Weight: | 1200KGS |
| Other Name: | Drill Rig | Drill Rod Diameter: | 42, 50mm |
| High Light: | 15kw small water well drilling rig,15kw water well drilling rig,180m small water well drilling rig |
||

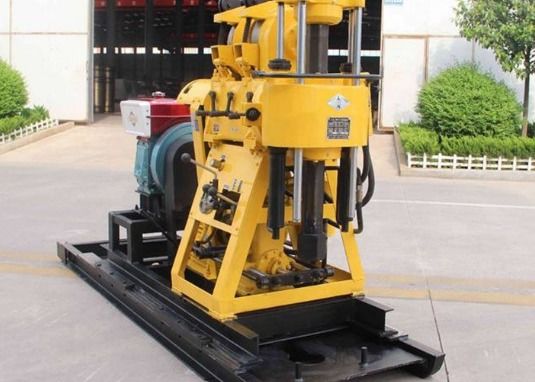

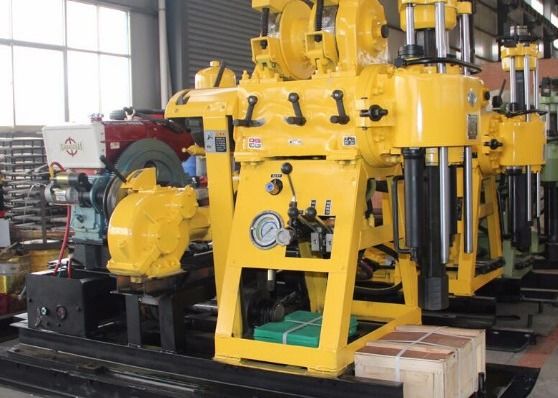

Portable Water Well Drilling Rig Bore Well Drilling Machine Price
Features of speed diamond core drilling rig for sale:
GK-180 has oil pressure feeding system to improve drilling efficiency and lighten labor strength.It configures upper ball clip clamping mechanism together with 6 sides' active drilling rod to practice pole collapse when running, high efficiency, safe and reliable.Centralized handles and convenient operation.Compact structure, small volume, light weight, strong resolvability and easy to move, which is suitable to work in plain or mountain area.
Main applications of speed diamond core drilling rig for sale:
General geological investigation, geophysical survey, road and tall building base prospecting, drilling projects like water well, blast hole and so on. According to different geological conditions, you can choose drilling bit kinds: diamond, alloy and steel particles to drill.
Technical parameters of speed diamond core drilling rig for sale:
| Drilling rigs | |
| Drilling depth | 100, 180m |
| Hole termination diameter | 110, 75mm |
| Holing diameter | 150mm |
| Drill rod diameter | 42, 50mm |
| Drill dip angle | 90°~75° |
| Borehole overall size (L*W*H) | 1433*697*1274m |
| Drill weight (power engine excluded) | 420KG |
| Drill overall size (L*W*H) | 1620*970*1560m |
| Drill weight (power engine excluded) | 620KG |
| Drill overall size (L*W*H) | 1700*780*1274m |
| Drill weight (power engine excluded) | 490KG |
| Gyrator | |
| Vertical shaft rotation speed | 664, 128, 287, 557 r/min |
| Vertical shaft travel | 450mm |
| Vertical shaft max. feeding pressure | 15KN |
| Vertical shaft max. hoisting ability | 25KN |
| Windlass | |
| Single line max. hoisting ability | 15KN |
| Drum rotation speed | 121, 76, 36r/min |
| Drum peripheral speed (second floor) | 0.166, 0.331, 0.733, 1.465m/s |
| Drum diameter | 140mm |
| Steel wire line diameter | 9.3mm |
| Oil pump | |
| Hydraulic pump pressure | 1.2Mpa |
| Outflow | 8ml/r |
| Rating rotation speed | 1500r/min |
| Power | |
| Diesel engine model | s1105 |
| Rating rotation speed | 2200r/min |
| Rating power | 15KW |
| Rating rotation speed | 1460r/min |
