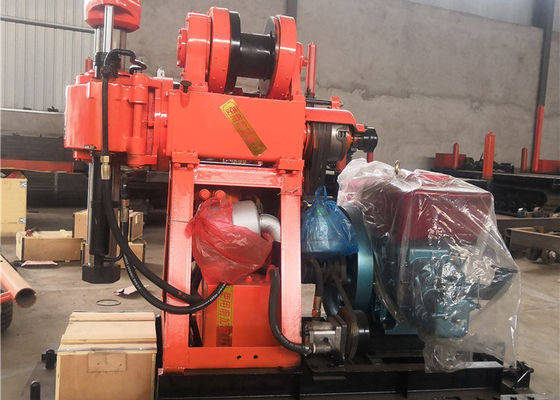

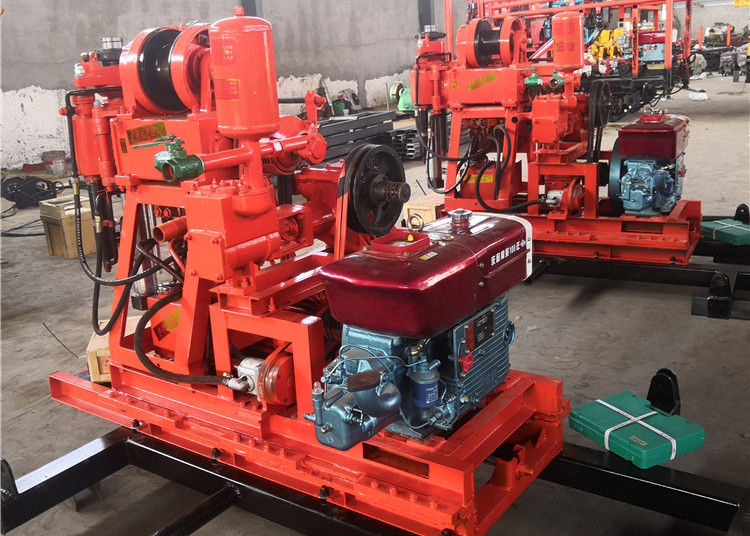

150 Meter Crawler Hydraulic Geological Drilling Rig

150 Meter Crawler Hydraulic Geological Drilling Rig
150 Meter Crawler Hydraulic Geological Drilling Rig 150 Meter Crawler Hydraulic Geological Drilling Rig

Large Image :  150 Meter Crawler Hydraulic Geological Drilling Rig

Product Details:

Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: XY-1A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Condition: New Type: Rotary Drilling Rig
Power Type: Diesel Usage: Water Well
Voltage: 380V Power(W): 15KW
Weight: 1200KGS Certification: ISO9001
Drilling Depth: 150M Drilling Diameter: 75-250mm
High Light:

Hydraulic Geological Drilling Rig

,

150 Meter Geological Drilling Rig

,

Crawler Geological Drilling Rig

150 Meter Crawler Hydraulic Geological Drilling Rig Full Hydraulic Drill Rig





Introduction to drilling rig:



Water well drilling rig is one of the most common equipment in various industries, all of our drilling rigs here are multifunctional, it can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method. The drilling rigs are not only designed for water drilling, they are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering. Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.



Features of drilling rig:



XY-1A series hydraulic drilling rig is a light weight drilling rig, widely used in general geological exploration of railway, road, bridge, dam and tall building base, geological core drilling, small grouting holes, blasting holes, civil wells, and earth central air conditioning wells, etc.

1, Fed by hydraulic cylinder, the drilling efficiency is higher, and it can save labor.

2,Equipped with national patented technology-taper clutch, it could achieve strong torque transmission, easy maintenance and free maintenance.

3,Vertical spindles are fixed by four groups of bearings to ensure that the rotator has enough rigid for gravel layer and other complex geological conditions.

Rig parameters:



Model  XY-1A
Drilling Depth 150m
Drilling Diameter 75-250mm
Drill Pipe Diameter 42-60mm
Drive Power 13.2 KW
Weight 740kg
Overall Dimension 2.4*0.8*1.4m
Vertical Shaft
Rotating Speed 142/285/570r/min
Stroke 450mm
Winch
Max Pull Force  20kN
Pull Speed 0.41-1.64m/s
Rope Dia 9.3mm
Drum Capacity 27m
Drill Mast
Rated Load 18T
Height 6.5
Mud Pump
Displacement 95L/min
Working Pressure 12 Bar
Times/min 93
Inlet Pipe Diameter 51mm
Outlet Pipe Diameter 32 mm



150 Meter Crawler Hydraulic Geological Drilling Rig 0
