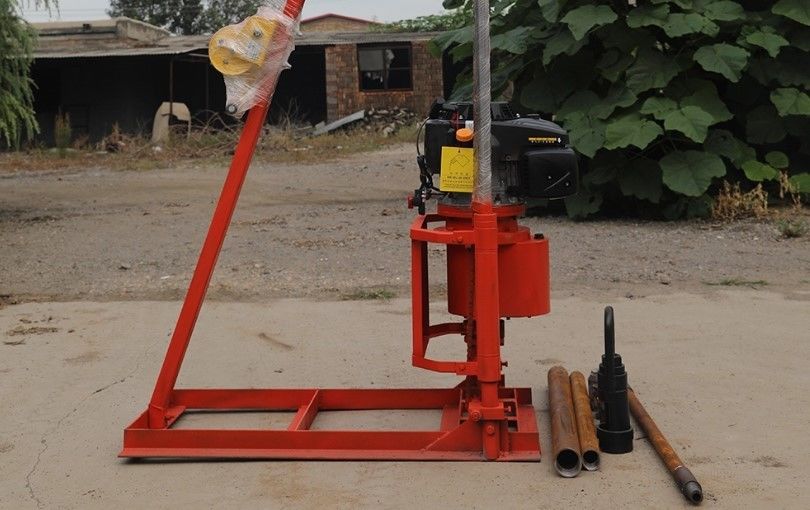

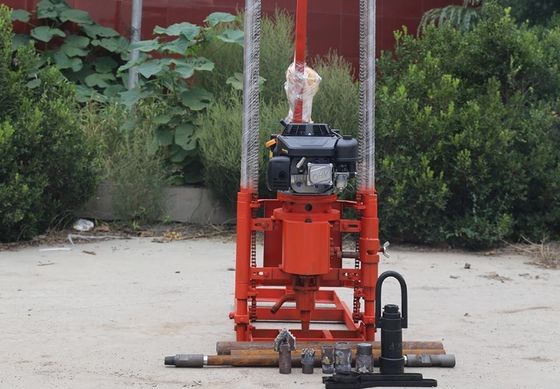

Gasoline Engine Rock Drilling 30m Coring Rig Machine

Gasoline Engine Rock Drilling 30m Coring Rig Machine
Gasoline Engine Rock Drilling 30m Coring Rig Machine Gasoline Engine Rock Drilling 30m Coring Rig Machine

Large Image :  Gasoline Engine Rock Drilling 30m Coring Rig Machine

Product Details:

Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: 30

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Portable Core Drilling Machine Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 30m Dimension(L*W*H): 1620*970*1560mm
Drill Pipe Diameter: 42mm Condition: New
Weight: 100KG Color: Red
High Light:

rock drilling coring rig

,

30m coring rig

,

42mm coring rig

Water Well Machine GK-200 Diamond Core Drilling Rig





Product Description



1. Brief Introduction

30 Portable sampling drilling rig is a linght multi-purpose mini engineering drilling rig. The machine is used for geological survey of industrial and civil construction, bridges, railways, highways, hydropower and other industries, also can drill guiding holes, advance boreholes, grounding holes, embedded parts guilding holes, blasting holes, inspecting holes, small home wells and so on.

2. Characteristic of rig

Compact structure, small size, light weight, two-speed shifting, easy to move, gasoline engine power is convenient for working in the field.


Rig parameters:



Basic data Elevator
Drilling depth 35 15m Lifting capacity 4000N
Open hole diameter 110mm Drum rotational speed 0.46 1.15 1.97m/s
Drill pipe diameter 33.5mm Drum diameter 90mm
Weight 290kg Wire rope diameter 8mm
Outsize 1510*600*1055mm Wire rope capacity 18m
Swivel Disc Box Oil pump
Speed

136 338 578 r/min



Type



CBW-F314-ALP gear oil pump
Maximum torque 350N*m displacement

14mL/r



Drilling schedule 400mm Rated speed 2500r/min
the biggest pressure(under the oil Cylinder) 8000N Rated pressure 20MPa
on the biggest force(Oil cylinder) 10000N The Max. pressure 25MPa
Power Tower
  Motor Diesel engine Type Single seamless steel tube
Type Y132M-4 R185 Tower height 5.6 Meter
Power 7.5KW 6.47KW
Speed 1440r/min 2200r/min
Weight 81KG 95KG
