Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001 | Name: | Water Well Drilling Rig |
|---|---|---|---|
| Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Usage: | Water Well | Voltage: | 380V |
| Power(W): | 15KW | Weight: | 1200KGS |
| Other Name: | Drill Rig | Drill Rod Diameter: | 42, 50mm |
| Condition: | New | ||
| High Light: | 150m mini water well drilling rigs,150m small well drilling rig,15KW mini water well drilling rigs |
||

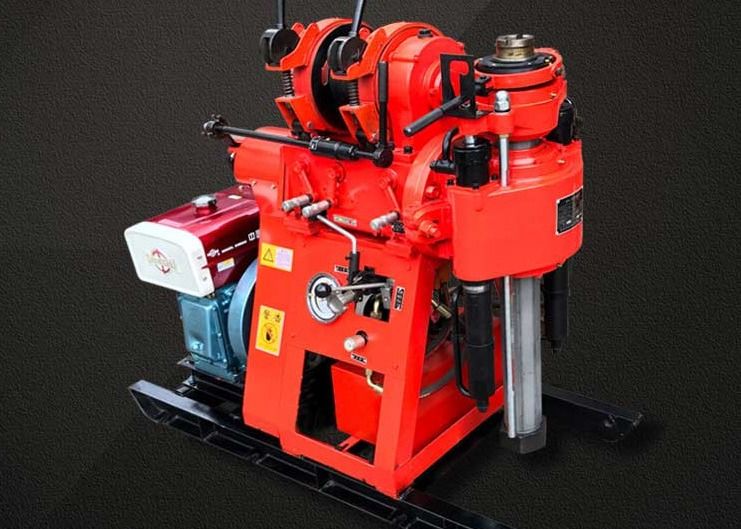

Small Water Well Drill 150m Core Drill XY-1A Water Well Drill Rig
Brief introduction of drilling rig
Xy-1a Water Well Drill Rig is designed on the basis of XY-1 drilling rig. It is a kind of high-speed portable drilling rig with oil pressure feeding.
Application and application scope of Water Well Drill Rig
1. It is mainly used for the general survey and engineering geological exploration of solid ore deposits, as well as the inspection holes for various concrete structures.
2. Diamond, alloy and steel grain bits can be selected for drilling according to different formations.
3. When the final hole diameter is 75mm and 46mm, the rated drilling depth is 100m and 180m respectively, and the maximum depth shall not exceed 110% of the depth of each drilling rig. The rated opening diameter is 110mm, and the maximum allowable opening diameter is 150mm.
Water Well Drill Rig parameters
| Drill | Swivel Head | ||
|
Drilling depth
|
Max.150m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42.50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 1500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine) | 1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power | 18KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1620*970*1560mm | ||
Features of Water Well Drill Rig
1. It has an oil pressure feeding mechanism to improve the drilling efficiency and reduce the labor intensity of workers.
2. The drilling rig is equipped with ball clamping mechanism and hexagonal active drill pipe, which can realize rod reversing without stopping the machine, with high working efficiency, convenient operation, safety and reliability.
3. It is equipped with a low pressure gauge to indicate the pressure, so as to master the situation in the hole.
4. The handle is centralized and easy to operate.
5. The drilling rig is compact in structure, small in size, light in weight, strong in decomposition, easy to be relocated and suitable for working in plain or mountainous areas.
