15KW 200M Geological Drilling Rig Machine For Exploration

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

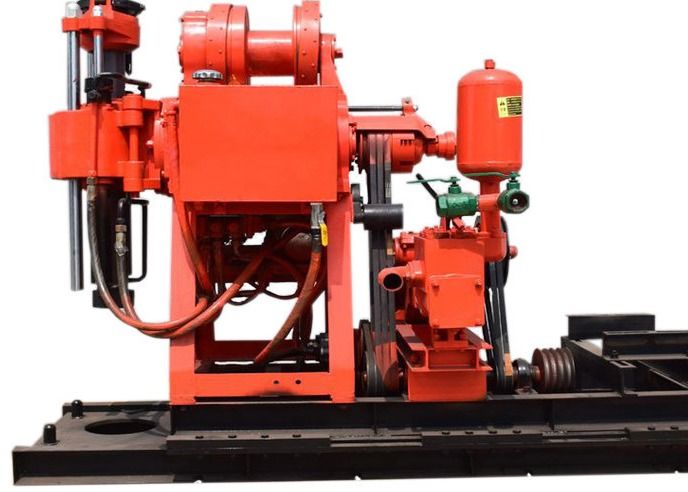

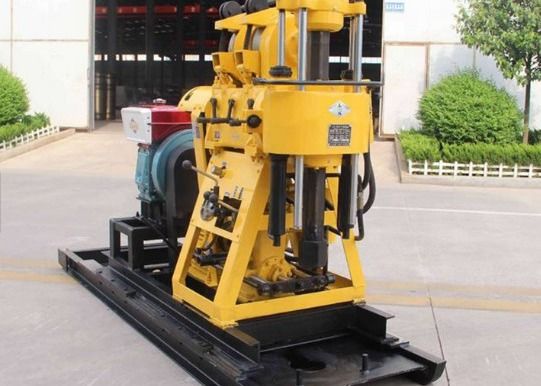

15KW 200M Geological Drilling Rig Machine For Exploration

15KW 200M Geological Drilling Rig Machine For Exploration
15KW 200M Geological Drilling Rig Machine For Exploration 15KW 200M Geological Drilling Rig Machine For Exploration

Large Image :  15KW 200M Geological Drilling Rig Machine For Exploration

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Model Number: GK200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Certification: ISO9001 Name: Geological Drilling Rig Machine
Type: Rotary Drilling Rig Power Type: Diesel
Usage: Water Well Voltage: 380V
Power(W): 15KW Weight: 626KGS
Other Name: Drill Rig Drill Rod Diameter: 42, 50,89
Condition: New Equipment Size(L * B * H): 1730 * 860 * 1360 (mm)
High Light:

200M Geological Drilling Rig Machine

,

200M Exploration Drilling Rig Machine

,

15KW Geological Drilling Rig Machine

200M Soil Sample Test Geological Core Drilling Rig Machine for Geological Exploration





Spt Mounted Mine Core Drill Rig Machine for Geological Exploration



The GK200 core drilling rig is a wide range of lightweight core drilling rigs that are small, lightweight and easy to handle. Suitable for geological survey of railways, water conservancy, bridges, foundations and other buildings, geological core drilling, small grouting holes, blasting holes, water well drilling. According to the formation, diamonds, composite sheets and alloy drill bits are selected for drilling.

With large rotary torque which are better than the other same level drilling machines. The rotary unit has different rotating speed grades, which can meet the requirements in different layers and different drilling projects and very effective in diamond drilling.



Geological Drilling Rig Machine parameters



Drilling diameter(mm) 75,91,110,130,150,300
Drilling depth (m) 200,150,100,70,50,30
Drill pipe diameter (mm) 42,50
Drilling angle(°) 90~75
Equipment size(L * B * H) 1730 * 860 * 1360 (mm)
Rig weight (except engine) 700
                                                         Gyrator
Spindle speed (four gear) (r/min) 115,230,505,1010
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 1.5
Winch assembly
Winch maximum lifting force (single rope) 20
Reel speed (r/min) 20,39,85,170
Reel circumferential speed(m/s) 0.172,0.345,0.738,1.476
Reel diameter(mm) 140
Wire rope diameter(mm) 9.3
Wire rope density (m) 40
Brake diameter(mm) 278
Brake band width (mm) 50


                                                        Oil pump
Oil pump type YBC -20/125
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-2500
Diesel engine or motor
Diesel engine 1115
Rated power (KW) 16.2
Rated speed (r/min) 2200
Rated pressure(Mpa) 12.5
Motor type Y160M - 4
Rated power (KW) 11
Rated speed (r/min) 1460



Core Drilling Rig  characteristic



1. Small and light, convenient for high altitude geological operations; 2. The hydraulic automatic feeding mechanism is adopted to improve the drilling efficiency and reduce the labor intensity of workers. 3. The vertical shaft box 4 sets ensure that the gyrator has sufficient rigidity to deal with complicated terrain conditions such as gravel layer and pebble layer;

4. It adopts national patent taper clutch, which has large transmission torque, convenient operation and maintenance-free



FAQ

Q1: Are you factory or trade company
A1: We are factory. And we have ourselves trading company.

Q2: How long is your air compressor machine warranty?
A2: One year for the whole machine and two years for screw air end, except consumable spare parts.

Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.

Q4: What about the voltage of products? Can they be customized?
A4: Yes, of course. The voltage can be customized according to your requirement.

Q5: Which payment term can you accept?
A5: 30% T/T in advanced, 70% T/T against the B/L copy.

Q6: How long will you take to arrange production?
A6: 380V 50HZ we can delivery, the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.

Q8.What about the maintenance?
A8: First maintenance need to be done after 500 Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment.



Q9: Can you accept OEM orders?
A9: Yes, with professional design team, OEM orders are highly welcome.

Q10: Which trade term can you accept?
A10: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
