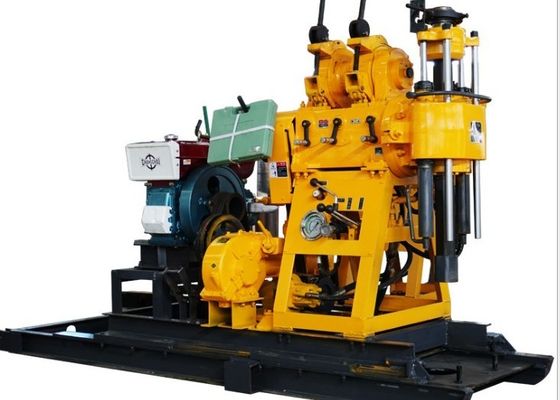

50mm Truck Mounted Hydraulic 15KW Diamond Core Drilling Rig

50mm Truck Mounted Hydraulic 15KW Diamond Core Drilling Rig
50mm Truck Mounted Hydraulic 15KW Diamond Core Drilling Rig 50mm Truck Mounted Hydraulic 15KW Diamond Core Drilling Rig

Large Image :  50mm Truck Mounted Hydraulic 15KW Diamond Core Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Model Number: GK200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Certification: ISO9001 Name: Geological Drilling Rig Machine
Type: Rotary Drilling Rig Power Type: Diesel
Usage: Water Well Voltage: 380V
Power(W): 15KW Weight: 626KGS
Other Name: Drill Rig Drill Rod Diameter: 42, 50,89
Condition: New Equipment Size(L * B * H): 1730 * 860 * 1360 (mm)
High Light:

15kw diamond core drilling rig

,

50mm diamond core drilling rig

,

12.5Mpa diamond core drilling rig

Powerful Multi-Function Truck Mounted Hydraulic Diamond Core Drilling Rig





Brief introduction of Core Drilling Rig



GK200 The core drill is mainly used for diamond and cemented carbide exploration and drilling of solid deposits. It can also be used for engineering geology and underwater exploration, shallow oil and gas exploitation, as well as ventilation and drainage of mine tunnels. It has the advantages of simple and compact structure, reasonable layout, light weight, convenient disassembly, reasonable speed range, diamond and cemented carbide drilling for solid deposits on the surface and tunnel. Drill bits such as alloy, steel sand and steel particles can be selected according to different bottom layers.



Core Drilling Rig parameters



GK-200 Core Drilling Rig Type
Drill Swivel Head

Drilling depth



Max.200m

Spindle speed



(4-speed)

115 230 505 1010r/m

Hole diameter



Max.300mm Spindle stroke 450kmm
Drill rod diameter 50mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-20/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.2Mpa
Flow speed 20ml/r
Rated speed 2000r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine) 1115
Hoisting drum revolution 20.39.85.170r/m Rated power 20KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 525KG
SIZE 1433x697x1273mm



Core Drilling Rig features



1. With oil pressure automatic feed mechanism, improve drilling efficiency, reduce labor intensity of workers.

2. The ball clamping mechanism is used to replace the chuck, and the rod can be reversed without stopping the machine. The operation is convenient, safe and reliable.

3. The winch is equipped with cage to form a double-sided supporting star wheel structure, which can withstand strong impact

4. Four groups of bearings of vertical shaft box are positioned to ensure that the rotator has enough rigidity to deal with complex geological conditions such as gravel layer and pebble layer

5. This machine adopts the taper clutch of national advanced technology, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance free

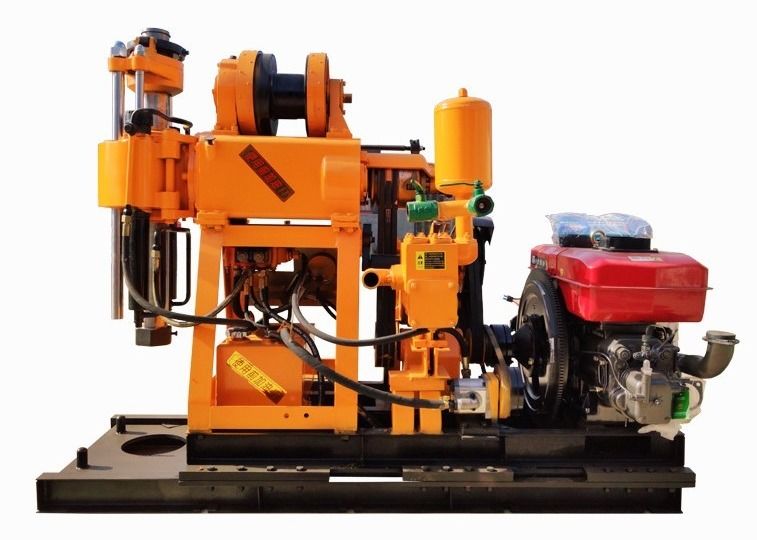

50mm Truck Mounted Hydraulic 15KW Diamond Core Drilling Rig 0

50mm Truck Mounted Hydraulic 15KW Diamond Core Drilling Rig 150mm Truck Mounted Hydraulic 15KW Diamond Core Drilling Rig 250mm Truck Mounted Hydraulic 15KW Diamond Core Drilling Rig 3

50mm Truck Mounted Hydraulic 15KW Diamond Core Drilling Rig 450mm Truck Mounted Hydraulic 15KW Diamond Core Drilling Rig 5
