Engineering 1500kg 10hp Crawler Transporter

Engineering 1500kg 10hp Crawler Transporter
Engineering 1500kg 10hp Crawler Transporter Engineering 1500kg 10hp Crawler Transporter

Large Image :  Engineering 1500kg 10hp Crawler Transporter

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: 1.5T Track Transporter
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Drive Wheel: Track Transporter Capacity (Load): 1500kg
Horsepower: 10hp Condition: New
Transmission Type: Automatic Fuel Type: Petrol / Gasoline
Colour: Yellow Power: Diesel Engine
Bucket Size: 1500*1100*500 Mm Motor Size: 186
Gear: +3 Forward Gear+1 Reverse Gear Crawler Width: 720mm
High Light:

Engineering Crawler Transporter

,

10hp Crawler Transporter

,

1500kg Crawler Transporter

Engineering Crawler Transporter For Small Mountain Orchard Track Transporter





Introduction to Track Transporter



TheT rack Transporter can adapt to paddy field, swamp, muddy field road, rugged mountain road and soft

Grassland and desert, wet ice and snow are used in transportation of agriculture, forestry and orchard and freight yard

Water conservancy construction, infrastructure construction, mining sites, etc.

It is suitable for swamp, river beach, desert, paddy field, tropical rain forest, snow and ice surface and other complex road conditions.



Track Transporter parameters



Type : 1.5T Bucket size: 1500*1100*500 mm
Size: 2400*1100*1400mm Crawler material: Rubber material
Track ground length: 1500mm Loading &unloading method: Hydraulic dump
Motor size: 186 Gear type: drawbar
Gear: +3 forward gear+1 reverse gear The height from the bottom of the bucket to the ground: 500 mm
Steering method: Clutch brake steering Start method: Electric start
Standing slope angle: 35 degree Crawler width: 720mm



Main Feature of Track Transporter



1. Wide application range, simple structure, stable transmission, easy operation and easy automatic control.

2. Applicable to complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice.

3. The dynamic load and impact resistance, the rear axle and suspension are strengthened.

4. With power track, torque, start low speed, the tracked dumper is suitable working in the soft, potholes and geological condition.

5. Single-cylinder power system with low fuel consumption.

6. the traction is large, the climbing performance is good, and the transportation capacity is strong.

7. the turning radius is small, flexible, especially suitable for narrow sites, reducing the cost of building roads.

8. equipped with electric start, handle centralized, easy to operate.

9. It is equipped with hydraulic lifting and lowering, self-unloading, reducing labor intensity and improving transportation efficiency.

10. Braking performance is smooth, to avoid the impact of the dumper during the start-up, braking to reduce the damage of parts and improve the driver's comfort, so the tracked dumper adapt to a wider range of different road conditions.

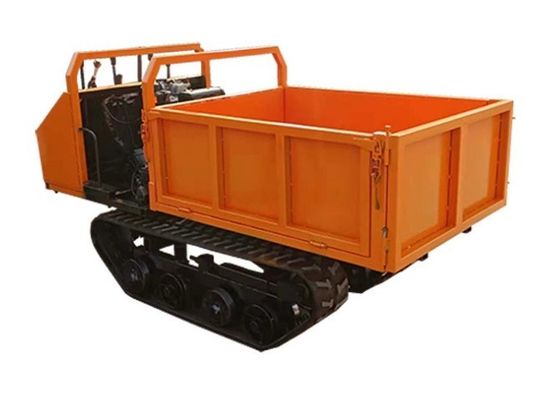

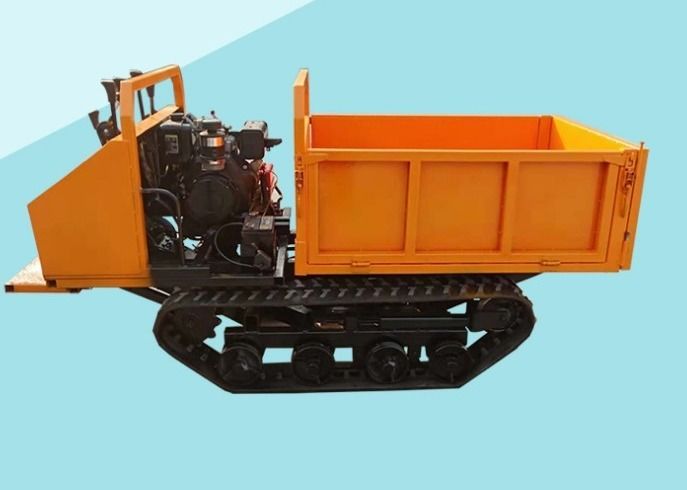

Engineering 1500kg 10hp Crawler Transporter 0Engineering 1500kg 10hp Crawler Transporter 1Engineering 1500kg 10hp Crawler Transporter 2Engineering 1500kg 10hp Crawler Transporter 3Engineering 1500kg 10hp Crawler Transporter 4
