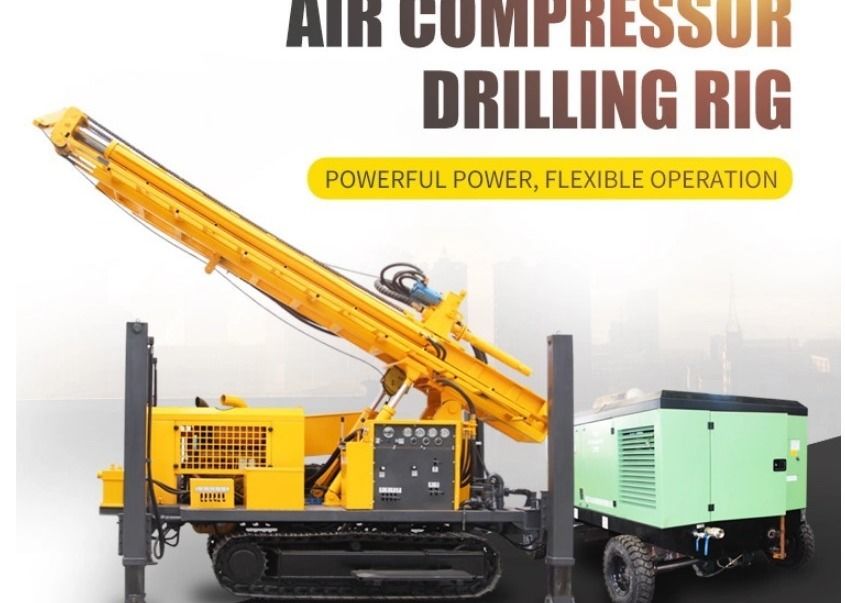

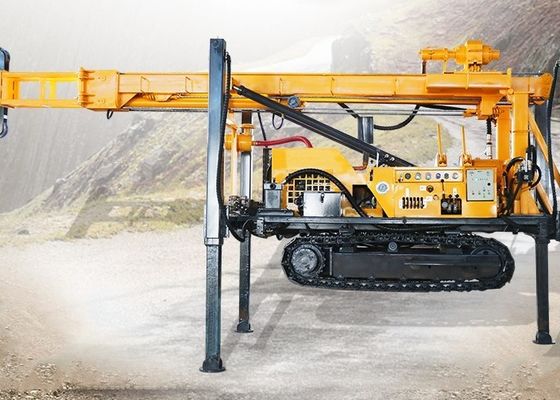

high leg pneumatic 3.5Mpa hydraulic crawler drilling machine

large.img.alt
small.img.alt small.img.alt

Large Image :  high leg pneumatic 3.5Mpa hydraulic crawler drilling machine

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: ST-200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Naked
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Type: Hydraulic Water Well Drilling Machine Power Type: Diesel
Driving Way: Hydraulic Driving Usage: Geological Core Drilling
Weight:: 5.5 T Voltage: 380V
Model Number: ST-200 Name: Well Drilling Equipment
Air Pressure: 1.25-3.5Mpa Warranty: 1 Year
High Light:

3.5mpa hydraulic crawler drilling machine

,

pneumatic hydraulic crawler drilling machine

,

3.5mpa pneumatic crawler drill

Crawler Type Hydraulic Well Drilling Machine High Leg Pneumatic Drilling Machine Walking Well Drilling Machine Manufactu



Product introduction



ST200 hydraulic down-hole drilling rig is a multi-functional drill rig driven by internal combustion engine, the drilling power was provided by hydraulic system except for impacting and the hole cleaning wind. It is convenient and efficient to operate. This drill is the best replacement for traditional pneumatic drills in most operation. The drill is compact in structure, simple in operation, light in total weight. HWQ hydraulic crawler drilling rig is widely used for blast-hole drilling in the mines and quarries. It is also used for anchor in road, railway, power station, civil engineering and building etc.


PRODUCT SPECIFICATIONS

No
Item
Data
1
Model
ST-200
2
Weight (kg)
5600
3
The hole diameter
140-305
4
Drilling depth (m)
200
5
Drilling stroke
3.3 m
6
Walking speed (km/h)
2.5
7
Max. climbing angles
30 °
8
Equipment power (KW)
70
9
Using air pressure
(Mpa)
1.7-3.0
10
Air consumption
17-31
11
Drill pipe diameter (mm)
φ76 φ89
12
Drill pile length (m)
1.5 / 2.0 / 3.0
13
Rig lifting force (T)
15
14
Swing speed (rpm)
45-70
15
Swing torque (N.m)
4000-5300
16
Dimension (mm)
4000* 1800 * 2450



FAQ



Q1.What is the main function of our drill rig?
Ans.: It has different models used for water well drill rig,mine blast hole drill,underground drill project,,etc

Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.

Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.

Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.

Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.



high leg pneumatic 3.5Mpa hydraulic crawler drilling machine 0high leg pneumatic 3.5Mpa hydraulic crawler drilling machine 1

high leg pneumatic 3.5Mpa hydraulic crawler drilling machine 2
