| Certification: | ISO9001 | Name: | Geological Drilling Rig Machine |
|---|---|---|---|
| Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Usage: | Water Well | Voltage: | 380V |
| Power(W): | 15KW | Weight: | 626KGS |
| Other Name: | Drill Rig | Drill Rod Diameter: | 42, 50，89 |
| Condition: | New | Equipment Size(L * B * H): | 1730 * 860 * 1360 (mm) |
| High Light: | Agricultural portable core drilling machine,Geological Exploration core drilling machine,15kw portable core drilling machine |
||

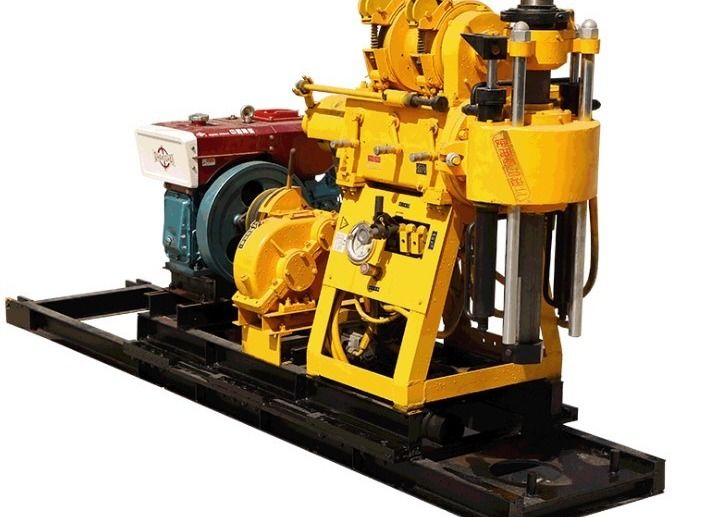

Small Hydraulic Core Drill For Geological Exploration And Agricultural Drilling
Brief introduction of drilling rig
Hydraulic well drilling rig 100m hydraulic core drilling rig geological exploration and agricultural drilling hydraulic drilling rig
The gk-200 drilling rig can change drilling tools quickly by adding displacement slide on the basis of common drilling rig, which can improve working efficiency and reduce labor intensity.
Scope of application:
1. The drilling rig is a high-speed drilling rig, which is suitable for general survey, geophysical exploration, road and building exploration, blasting hole drilling and other drilling projects.
2. According to the different bottom layer, alloy, diamond and composite bits can be selected for drilling.
3. It can drill 2-9j sandy clay and rock.
GK200 Hydraulic Portable 200m Water Well Drilling Machine
| Drilling depth | 200m |
| Open hole diameter | 75-300mm |
| End hole diameter | 75mm |
| Active drill rod | 53/59*4200mm |
| Rod diameter | 50,60mm |
| Drill angle | 90°-75° |
| Matched power(diesel power) | 15kw/2200r/min |
| Dimension | 2800*950*1700mm |

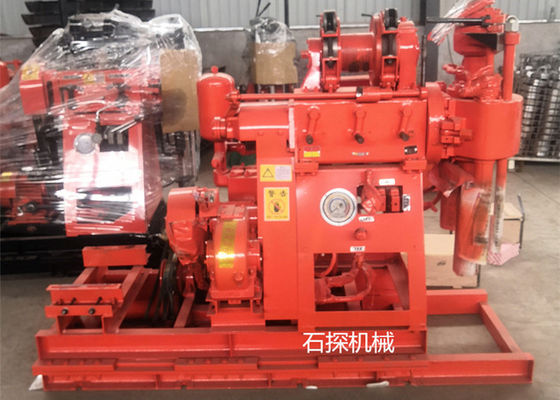

200 meters SPT core sample testing drilling rig
This equipment is a kind of full multifunctional and steady function deep core drilling rig.It suitable for alloy/diamond core drilling,widely used for exploration and gelogical survey,construction project,water-power engineering project,highway,railway and seaport drilling project.Also suitable for drill a water well .
Advantage of this drilling machine:
1,Adopt auto vehicle transmission and cluth,good speed gear,easy operation.
2,Taper clutch with outstanding transmission torque, easy operation and maintenance-free features
3,With light structure,easy disassemble,convenient to move.
4,Four sets of bearing positioning of the vertical axle box ensure that the gyrator has sufficient rigidity to deal with complex geological conditions such as gravel layer and pebble layer.
