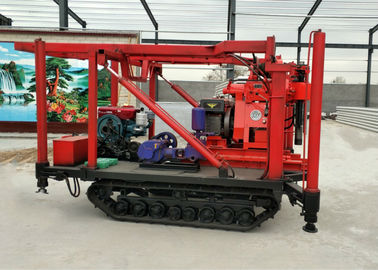

Small Borehole Geological Rock 15kw Portable Water Well Drilling Rig

Small Borehole Geological Rock 15kw Portable Water Well Drilling Rig
Small Borehole Geological Rock 15kw Portable Water Well Drilling Rig Small Borehole Geological Rock 15kw Portable Water Well Drilling Rig

Large Image :  Small Borehole Geological Rock 15kw Portable Water Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Model Number: XY-2 Type: Core Drill Rig
Power Type: Diesel Usage: Coal, Oil
Voltage: 380V Power(W): 15KW
Dimension(L*W*H): 2220x900x1880mm Drilling Depth: Max.100~530m
Angle Range: 0°~90° Spindle Speed: 57 99 157 217 270 470 742 1024 R/min
WEIGHT: 1200KG Hole Diameter: 500m
High Light:

borehole portable water well drilling rig

,

borehole small water well drilling rig

,

15kw portable water well drilling rig

Small Borehole Geological Rock Core Water Well Drilling Rig Machine Portable


Core Drilling Rig

XY-2B hydraulic core drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, holes in concrete structure, river levees, civil water wells and ground temperature central air-conditioner.

Core Drilling Rig Product parameters


XY-2 BType
DrillSwivel Head

Drilling depth


Max.100~530m

Spindle speed


57 99 157 217 270 470 742 1024 r/min

Hole diameter


Max.600mSpindle stroke560mm
Drill rod diameter42mmSpindle pull-down Max.50KN
Angle range0°~90°Spindle lifting capacityMax. 60KN
Oil pumpWater pump
Model YBC-20/125ModelGear oil pump
Rated pressure8MpaWorking pressureMax. 10Mpa
Flow speed20ml/r
Rated speed150r/min
HoistPower(diesel)
Max. lifting capacity212kgsModel(diesel engine395K2
Hoisting drum revolution20.39.85.170r/mRated power19.85KW
Drum diameter140mmRated speed2200 r/min
WEIGHTAROUND 1200kgs
SIZE2220x900x1880mm


Core Drilling Rig Advantages


This machine gained 3 national practical new type patents invention.

1. To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod,with strong rigidity and big transfer torque .

2. To be provided with cone plate friction clutch,being facile to operate,with big transfer torque.

3. To adopt rolling bearing type hoist,with wide brake band and big lifting capacity.

4. To be equipped with speed reducer and sludge pump,being integrated structure.

5. The entire machine is featured by stong adaptability,high motive power,low cost and broad compatibility.

6. To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of construction efficiency.

7. To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.

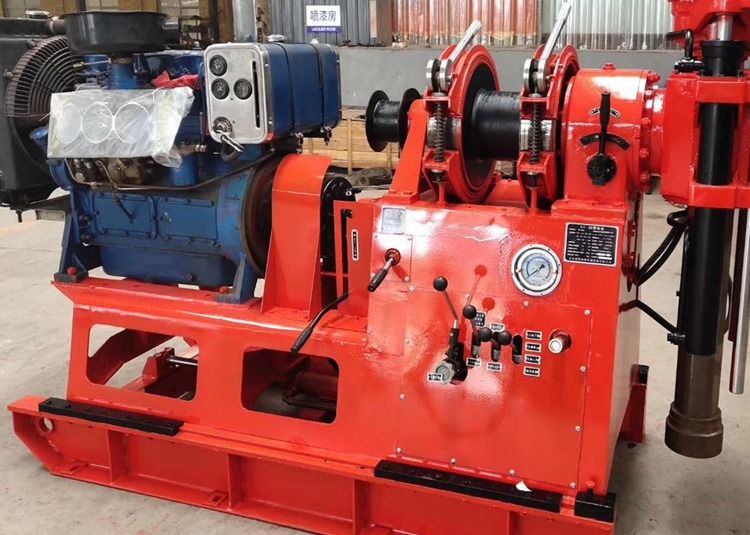

Small Borehole Geological Rock 15kw Portable Water Well Drilling Rig 0
Small Borehole Geological Rock 15kw Portable Water Well Drilling Rig 1Small Borehole Geological Rock 15kw Portable Water Well Drilling Rig 2Small Borehole Geological Rock 15kw Portable Water Well Drilling Rig 3
