| Type: | Geological Drilling Rig Machine | Power Type: | Diesel |
|---|---|---|---|
| Usage: | Water Well,railways, Core Drilling | Drilling Depth: | 100m |
| Dimension(L*W*H): | 1640*1030*1440mm | Drill Pipe Diameter: | 42mm |
| Borehole Dip Angle: | 90°~75 | Spindle Speed: | 142、285、570（r/min) |
| Model: | YBC-12/125 | Rated Pressure: | 12.5Mpa |
| Model(diesel Engine）: | 1105 | Rated Power: | 18KW |
| WEIGHT: | AROUND500KG | Spindle Stroke: | 450kmm |
| High Light: | 570r/min geological drilling rig machine,100m geological drilling rig machine,42mm geological drilling rig machine |
||

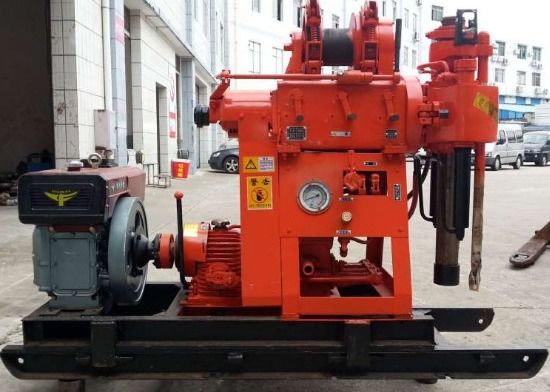

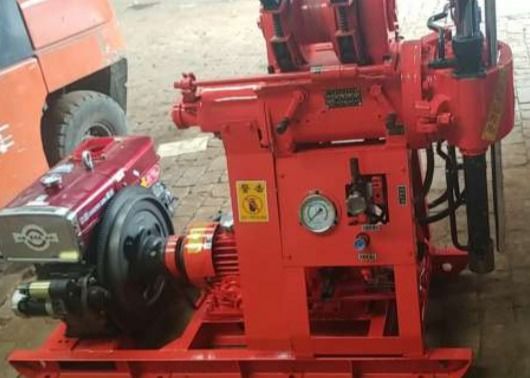

Top Quality Well Drilling Rig For Geological Exploration XY-1 Drilling Rig
Applications of Geological Drilling Rig Machine
XY-1 Core drilling rig is suited for the applications of general exploration and investigation, geophysical prospecting. Road and construction survey, blast holes and other drilling operations.With hydraulic automatic feeding device. Elevated drilling efficiency.The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.Centralized handle, easy operation, safe and reliable.The drilling machine,pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.
Geological Drilling Rig Machine technical parameter
| Drilling Rig | |
| Drilling diameter(mm) | 110 |
| Drilling depth (m) | 100 |
| Drill pipe diameter (mm) | 42 |
| Drilling angle(°) | 90~75 |
| Equipment size(L * B * H) | 1640* 1030 * 1440 (mm) |
| Rig weight (except engine) | 500 |
| Gyrator | |
| Spindle speed (four gear) (r/min) | 142,285,570 |
| Spindle travel(mm) | 450 |
| Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
| Spindle no load drop maximum movement speed(m/s) | 0.067 |
| Spindle maximum feed pressure(KN) | 15 |
| Spindle maximum lifting force(KN) | 25 |
| Spindle maximum output torque(KN• m) | 0.5 |
| Winch assembly | |
| Winch maximum lifting force (single rope)(KN) | 10 |
| Reel speed (r/min) | 55,110,220 |
| Reel circumferential speed(m/s) | 0.42,0.84 ,1.68 |
| Reel diameter(mm) | 145 |
| Wire rope diameter(mm) | 9.3 |
| Wire rope density (m) | 27 |
| Brake diameter(mm) | 230 |
| Brake band width (mm) | 50 |
| Water pump | |
| Pump type | Horizontal single cylinder double acting |
| Maximum displacement (motor)(L/min) | 95(77) |
| Work pressure (Mpa) | 0.7 |
| Cylinder diameter (mm) | 80 |
| Piston stroke(mm) | 100 |
| The maximum allowable pressure (Mpa) | 1.2 |
| Oil pump | |
| Oil pump type | Gear pump |
| Nominal pressure (Mpa) | 12.5 |
| Rated flow(ml/r) | 20 |
| Rated speed(r/min) | 800-2500 |
| Diesel engine or motor | |
| Diesel engine | ZS1100 |
| Rated power (KW) | 12.1 |
| Rated speed (r/min) | 2200 |
| Rated pressure(Mpa) | 11 |
| Motor type | Y160M - 4 |
Geological Drilling Rig Machine advantage
1. With hydraulic automatic feeding device, elevated drilling efficiency.
2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
3. Centralized handles, easy operation, safe and reliable.
4. The drilling rig, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.
5. Light weight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
