Product Details:
Payment & Shipping Terms:
|
| Model Number: | XY-2 | Type: | Core Drill Rig |
|---|---|---|---|
| Power Type: | Diesel | Usage: | Coal, Oil |
| Voltage: | 380V | Power(W): | 15KW |
| Dimension(L*W*H): | 2220x900x1880mm | Drilling Depth: | Max.100~530m |
| Angle Range: | 0°~90° | Spindle Speed: | 57 99 157 217 270 470 742 1024 R/min |
| WEIGHT: | 1200KG | Hole Diameter: | 500m |
| High Light: | hydrogeological portable core drilling machine,powerful portable core drilling machine,XY-2B core drilling machine |
||
300m-500m Powerful Hydrogeological Core Drilling Machine Rig XY-2B

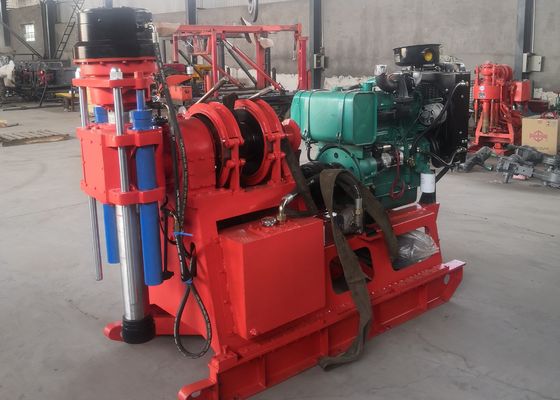

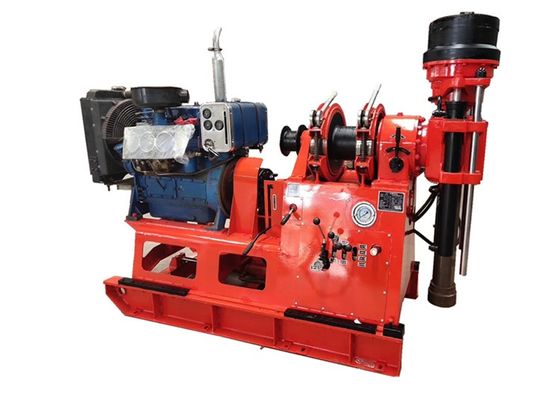

XY-2B Core Drilling Rig
XY-2B Core Drilling Rig is a portable medium-shallow hole core drilling machine, mainly used in large and small hole core drilling, water well, geothermal and irrigation well, geotechnical investigation, mining exploration, bridge building, geothermal wells, blast-hole, as well as large hole construction works (such as mini type pile foundation drilling). It has advantages of light weight, good quality, high installed power, strong suitability, etc.
Core Drilling Rig Product parameters
| XY-2 BType | |||
| Drill | Swivel Head | ||
|
Drilling depth |
Max.100~530m |
Spindle speed |
57 99 157 217 270 470 742 1024 r/min |
|
Hole diameter |
Max.600m | Spindle stroke | 560mm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.50KN |
| Angle range | 0°~90° | Spindle lifting capacity | Max. 60KN |
| Oil pump | Water pump | ||
| Model | YBC-20/125 | Model | Gear oil pump |
| Rated pressure | 8Mpa | Working pressure | Max. 10Mpa |
| Flow speed | 20ml/r | ||
| Rated speed | 150r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 212kgs | Model(diesel engine | 395K2 |
| Hoisting drum revolution | 20.39.85.170r/m | Rated power | 19.85KW |
| Drum diameter | 140mm | Rated speed | 2200 r/min |
| WEIGHT | AROUND 1200kgs | ||
| SIZE | 2220x900x1880mm | ||
Core Drilling Rig Advantages
(1) It has automatic hydraulic feeding mechanism to improve drilling efficiency and reduce the physical labor intensity of workers.
(2) The ball card clamping mechanism is used instead of the chuck, and the clamping positioning mechanism is provided to implement the non-stop rewinding.
(3) It is equipped with a bottom pressure gauge to indicate the pressure, which is convenient for grasping the inside of the hole.
(4) The handle is concentrated and easy to operate.
(5) Compact structure, the rig and the power machine are all installed on the same base, occupying a small area.
(6) Light weight, high decomposability, easy to relocate, suitable for work in plain or mountainous areas.
(7) It is equipped with a safety shield, which highlights the humanized design features of the equipment.
(8) The fixing nut is installed at the joint between the lower end of the feed cylinder and the vertical shaft box, which improves the reliability of the drilling rig.
Application:
1. With hydraulic automatic feeding device, elevated drilling efficiency.
2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
3. Centralized handles, easy operation, safe and reliable.
4. The drilling machine, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.
5. lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas..
